2L Monoblock Water Rinsing Filling Capping Machine PET Bottle Pure Drinking 0.5Mpa
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | CGF8-8-3,CGF32-32-10,CGF18-18-6,CGF12-12-4,CGF24-24-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SETS |
|---|---|
| Price: | 9975USD-19950USD |
| Packaging Details: | Wooden Case Packing |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Machinery Capacity: | 4000BPH, 8000BPH, 12000BPH, 3000BPH, 5000BPH | Bottle Volume: | 500ML-2L |
|---|---|---|---|
| Suitable Bottle: | PET Round Or Square Bottle | Function: | Full-automatic Rinsing-filling-capping |
| Automatic Grade: | Automatic | Bottle Size: | Neck：D50-100mm，Height：150-320mm |
| Water Pressure: | 0.18-0.25Mpa | Air Pressure: | 0.5Mpa |
| Air Consumption: | 0.3m3/min | Power: | 4-7.6KW |
| Highlight: | Water Rinsing Filling Capping Machine,2L Monoblock Water Filling Capping Machine,0.5Mpa Water Filling Capping Machine |
||
Product Description

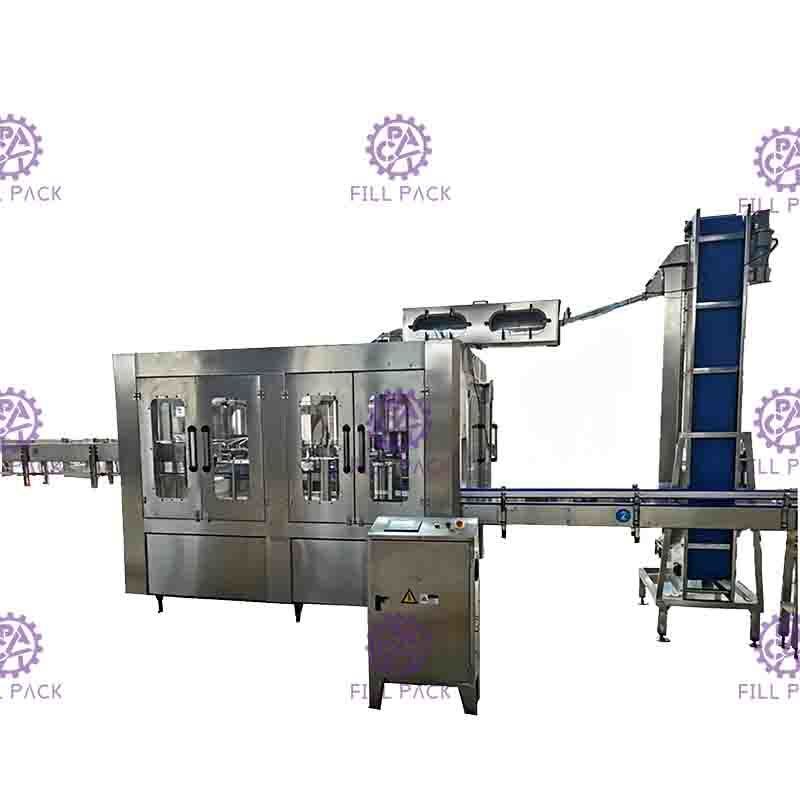

500ML-2L 3 In 1 Monoblock PET Bottle Pure Drinking Water Rinsing Filling Capping Machine Equipment Plant Bottling Line
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company.
Our Advantages
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.With over 10 years of experience in designing and implementing customised complete PET line solutions for water, we can help you reach your production targets. Over the years, we have been committed to improve the structure of equipment, optimize the performance of equipment to achieve high capacity and low energy consumption.

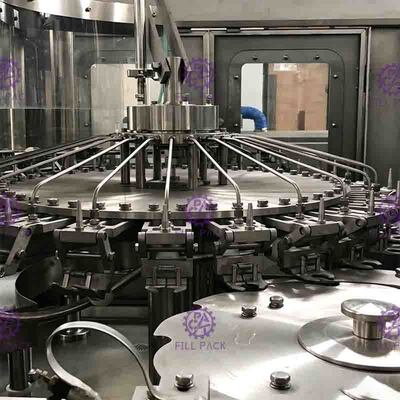

Washing part
1. Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
2. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
3. The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
4.The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
5. Rinsing time can be guaranteed for 4 seconds.
6.By adjusting the height of the rotary parts to adapt for different bottle height
7. The motivation is derived from the driven system in the framework passed by gear.
8.The supplying of rinsing water is controlled by solenoid valve.
2. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
3. The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.
4.The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.
5. Rinsing time can be guaranteed for 4 seconds.
6.By adjusting the height of the rotary parts to adapt for different bottle height
7. The motivation is derived from the driven system in the framework passed by gear.
8.The supplying of rinsing water is controlled by solenoid valve.

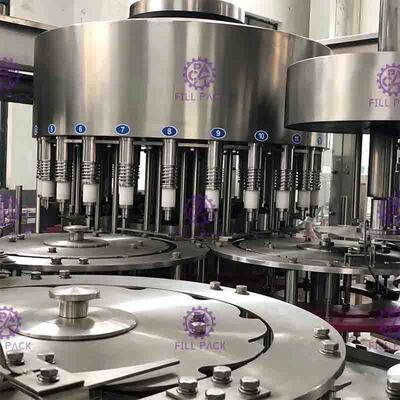

Filling part
1) Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The rotate plate is made of SUS AISI304, large flat toothed bearing.
3) The whole valve is made of 304 stainless steel.
4) The filling system has a CIP circulation system to wash the pipeline and fake-cup used for cleaning filling valve.
5) The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically.
6).High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

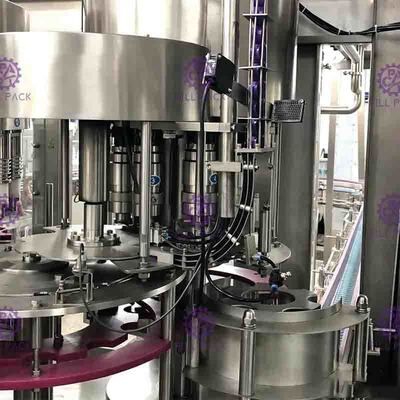

Capping part
1)Introduce most advanced cap sealing technology called France “ZALKIN ". With the help of expert from institute of electro mechanics and mechanical engineering of Shanghai Communications University, we successfully designed. For example: I) the screwing capping head cam (the main parts which can assure the machine run stationary), while adopting “ZALKIN” technology, the expert improve the authenticity and stability of the machine focused on dynamics and kinematics. II) Screwing capping head (the main parts which can assure the capping quality).
2)The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap.
3)The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide.
4)A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide. 5)A bottle inlet detect switch is settled on the screwing capper.
6)There are aseptic nozzles between the transition poking wheel and filling parts to rinse the product rested in the bottleneck screw parts.
7)There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap.
8)By adjusting the height of the rotary parts to adapt for different bottle height.
9)The motivation of the screwing capper is derived from the driven system in the framework and passed by gear.
10)The main parts of the screwing capper are processed by the digital-control processing center.
Parameters
|
Model
|
CGF 8-8-3
|
CGF12-12-4
|
CGF18-18-6
|
CGF24-24-8
|
CGF32-32-10
|
|
Capacity(B/H)(500ml)
|
2000-3000
|
0-4000 |
0-5000
|
0-8000
|
0-12000
|
|
Bottle size
|
Neck:φ20-50mm；Height:150-320mm
|
||||
|
Water pressure
|
0.18-0.25Mpa
|
||||
|
Water consumption
|
1000(kg/h)
|
||||
|
Washing station
|
8
|
12
|
18
|
18
|
16
|
|
Dripping station
|
2-2-2
|
2-2-2
|
2-2-2
|
2-2-2
|
8
|
|
Filling precision
|
＜+1MM
|
＜+1MM
|
＜+1MM
|
＜+1MM
|
＜+1MM
|
|
Air pressure
|
0.4Mpa
|
0.4Mpa
|
0.5Mpa
|
0.5Mpa
|
0.6Mpa
|
|
Air consumption (m³/min)
|
0.3m3/min
|
0.3m3/min
|
0.3m3/min
|
0.3m3/min
|
0.5m3/min
|
|
Power(kw)
|
4
|
5
|
4
|
4
|
7.6
|
|
Weight(kg)
|
1500
|
2500
|
4000
|
5000
|
5000
|
|
Dimension(mm)
|
1800*1500* 2300
|
2100*1700* 2400
|
2150*1750*2400
|
2750*2100*2400
|
3800*3200*2100
|
Application:
