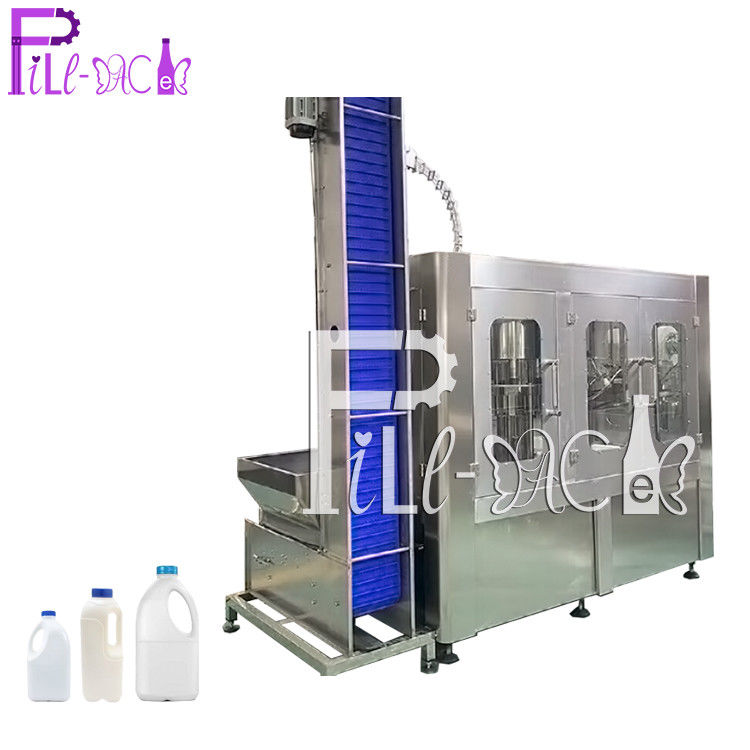

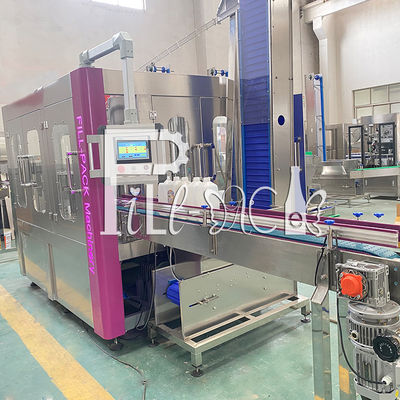

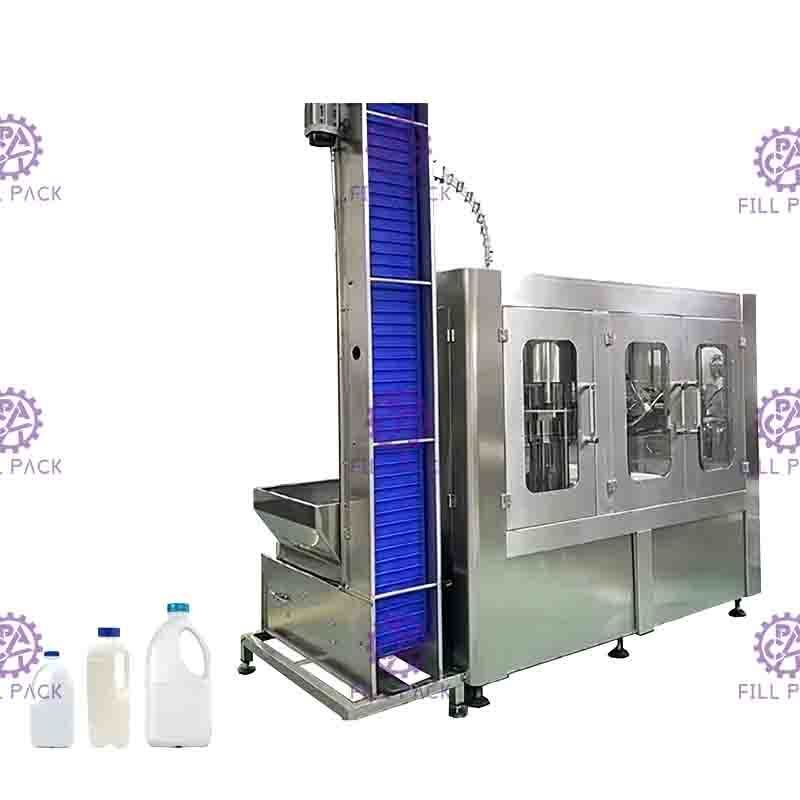

Automatic monoblock 6000BPH Bottle Integral 3-in-1washing-filing-capping Milk Filling Machine / device
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | 24-24-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SETS |
|---|---|
| Price: | 13500USD |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 15-20 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
|
Detail Information |
|||
| Capacity (B/H): | 6000B/h(500ml) | Filling Heads: | 24 |
|---|---|---|---|
| Washing Heads: | 24 | Capping Heads: | 8 |
| Filling Type: | Compressive Stress Filling | Filling Temperature: | 85℃±1℃ |
| Compressing Air: | 3m3/h | Water: | 1.5T/h |
| Highlight: | Automatic Milk Filling Machine,6000BPH Milk Filling Machine |
||
Product Description

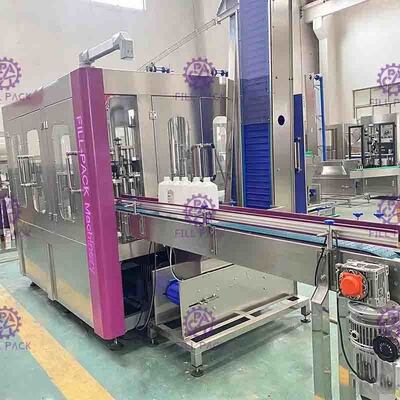

Monoblock Linear bottle rinser + filler+ capper

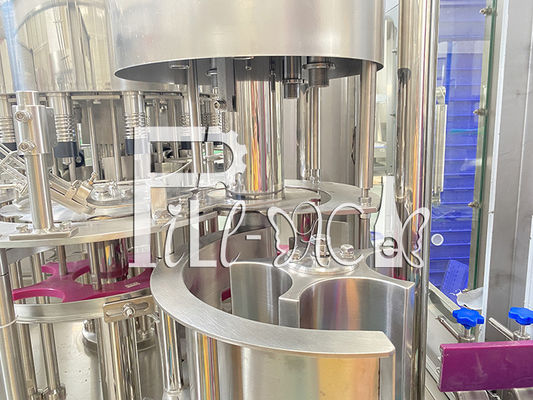

Bottle rinser
The working principle is that the empty bottle is conveyed by the bottle inlet gear to the turnplate with bottle clamp ,the bottle clamp will open its mouth and clamp the empty bottle tightly ,the empty bottle will turn 180 degree,(bottle mouth is under),the nozzle will wash the bottle inside, a moment later, the bottle clamp will turn 180 degree again( bottle mouth upturned) and flow into the plastic gear zone,the bottle clamp will loose.the cleaning bottle will convey to the filler . main gearing The main part will turn the big gear(the washer in line with filler, its main job is that complete wash and convey the bottle )

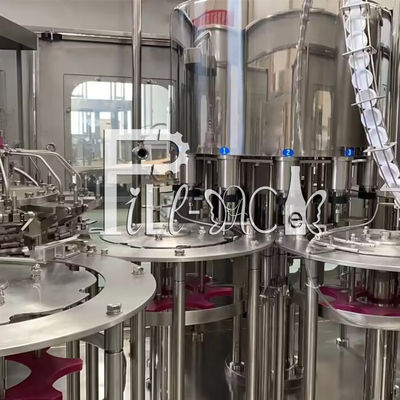

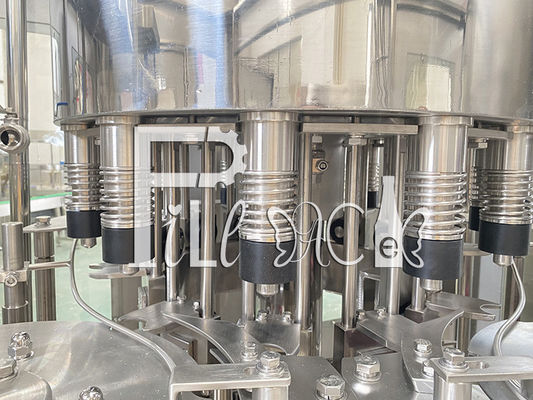

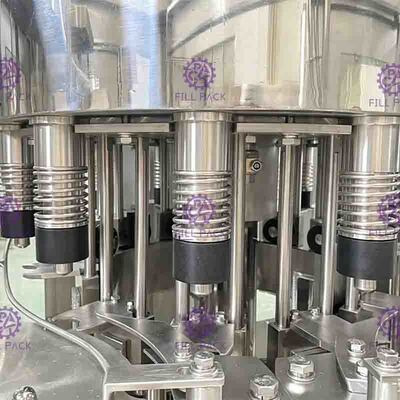

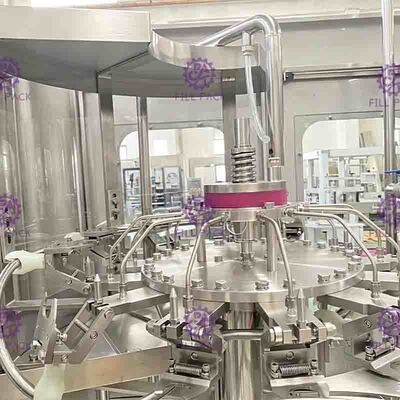

Bottle filler
24 head filling as a reference 1)Adopted Germany anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment. 2)The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel. 3)The filling system has a CIP circulation system to wash the pipeline and filling valves. This system can clean the liquid pipe, liquid tank and filling valve etc. effectively. 4)The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling. 5)The liquid supply adopts the automatic pneumatic valve magnetic liquid-level switch to control the liquid tank automatically. 6)The motivation of the filler is derived from the driven system in the framework and passed by gear.

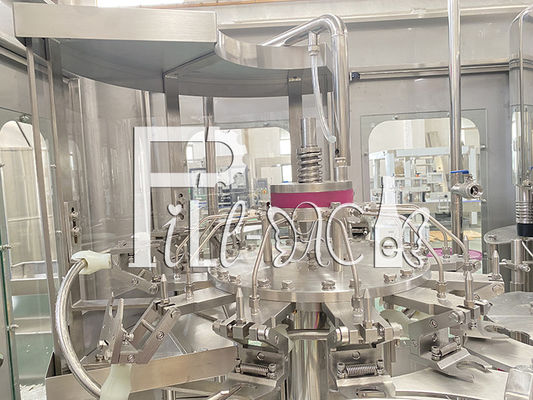

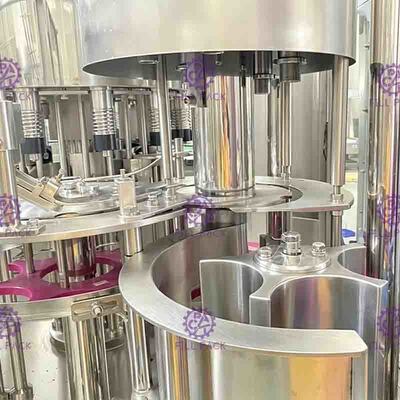

Screw capper:
This unit is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.Characteristic of the screwing capper as follows: 1) Screwing capping head (the main parts which can assure the capping quality), the expert improve the design of magnetic steel, this improvement can reduce the defective rate of capping better and the traditional character of easy to set and adjust the torque of screwing capping head. 2) The screwing capping head is dual-purpose design; it is suitable for flat cap and sport cap. 3) The device which can take out the reverse cap and prevent the reverse cap passing is settled in the cap-falling guide. Passing by cap loading system. 4) A group of photoelectric switches are settled on cap-falling guide. The machine will stop when there is no cap on the guide. 5) A bottle inlet detect switch is settled on the screwing capper. 6) There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no cap. 8) By adjusting the height of the rotary parts to adapt for different bottle height. 9) The motivation of the screwing capper is derived from the driven system in the framework and passed by gear. 10) The main parts of the screwing capper are processed by the digital-control processing center.
Parameters:
|
Capacity (B/H)
|
6000B/h(500ml)
|
|
Filling range
|
3-10L
|
|
Bottle size
|
Diameter Φ50mm-Φ90mm
Height 165mm-310mm |
|
Filling accuracy
|
±5mm
|
|
Compressing air
|
3m3/h
|
|
Water
|
1.5T/h
|
|
Power(kw)
|
4KW
|
|
Weight(kg)
|
3000KG
|
|
Dimension(L*W*H)
|
2900mm*2100mm*2400mm
|
Electrical apparatus:
|
Transducer
|
Mitsubishi
|
FL-2.2K
|
|
Touch screen
|
Easyview-TaiWan
|
MT6070
|
|
PLC
|
Mitsubishi
|
FXIS-20MR
|
|
Stabilized voltage supply
|
MingWei-TaiWan
|
S-35-24
|
|
Contactor
|
Schnider
|
CJX2-0910
|
|
Approach switch
|
Autonics
|
PR18-8DN
|
|
Air switch
|
Schnider
|
3P-D20
|
|
|
|
IP-C3
|
