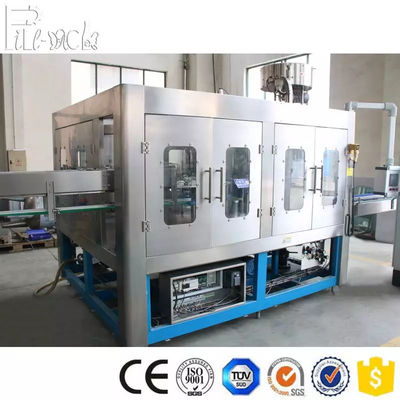

15000BPH 3 In 1 Monoblock Pure Drinking PET Bottle Water Filling Machine Producing Equipment Stainless Steel 304

Product Description

15000BPH 3 In 1 Monoblock Pure Drinking PET Bottle Water Filling Machine Producing Equipment Stainless Steel 304

General description:

The bottled water manufacturing machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.


Operation model: Automatic PLC control

Structure: Monoblock, Rotary

Filling way: Normal pressure filling
Applicable Bottle: PET bottle

Applicable cap: Screw cap
Applicable Volume: 0.25-2.5L

Structure advantage:

1, Bottle neck holding model, once making sure the bottle neck is same, the bottle water filling machine can be used for different volume bottles without changing anything;

2, Air conveyer inlet for bottle water filling machine, it can guarantee fast speed bottle conveying without falling down for light empty bottles;

3, Stainless steel rinsing clamps to reduce 2nd pollution for bottle neck;

4, Silicon pad to be attached on filling valve for easy filling volume adjustment;

5, 1 piece type stop capping knife, longer wearing resistance and easy change;

Specifications:

Company advantage

1, Full experience sales and after sales team; Responsible production team and patient commissioning group;

2, Engineer is good at designing more stable technology for all parts for bottle water filling machine;
