2Heads Semi Automatic Water Filling Machine Electric Digital Control Pump Liquid Bottle
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | BZSKG-1/BZSKG-2/BZSKG-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 300USD-1050USD |
| Delivery Time: | 7 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Filling Range: | 5ml-3500ml | Maximum Flow: | 3.2L/min-12.8L/min |
|---|---|---|---|
| Power: | 30-120W | Maximum Suction: | 2m |
| Repeat Error: | <0.5% | Anti-drip Function: | YES |
| Total Weight: | 4.5KG | Power Off Memory Function: | YES |
| Highlight: | Semi Automatic Water Filling Machine,2Heads Water Filling Machine,Electric Digital Control Liquid Bottle Pump |
||
Product Description

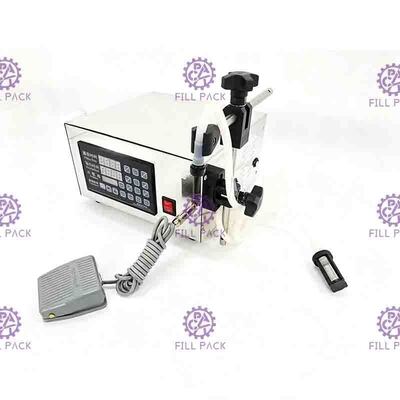

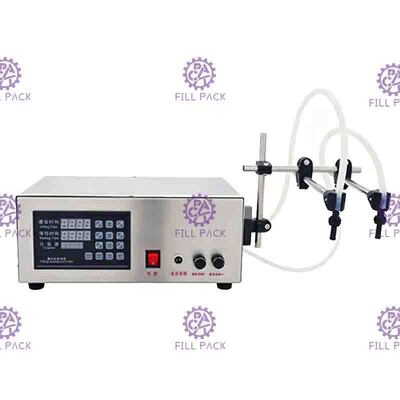

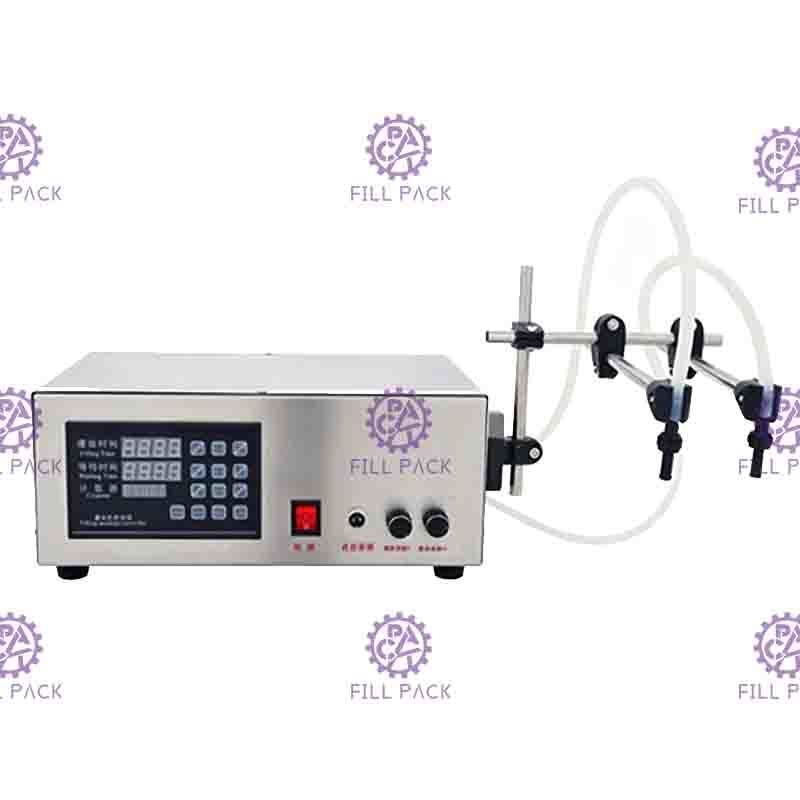

Semi Automatic 1/2/4 Heads Electric Digital Control Pump Liquid Bottle Water Filling Machine
Digital Control Liquid Filling Machine is suitable for liquid filling.

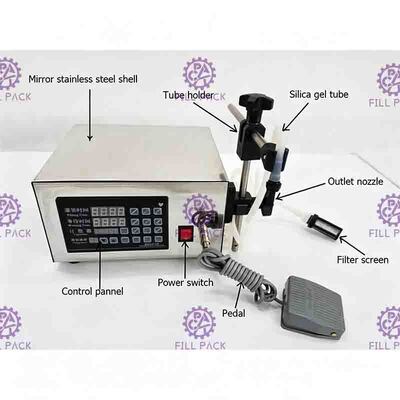

Bracket installation refer to the above picture installation;
Function introduction:
A, [filling time]: adjust the time of the pump work; control the amount of filling;
B, [waiting time]: the interval between the first and second automatic filling state; used in the automatic filling state;
C, [Counter]: Memorize the amount of production within a certain period of time;
D, [Filling speed]: Adjustment of dosing volume;
E, [Filling setting]: Automatically set the filling amount button; when the machine is switched on; start the filling setting; when the amount of machine filling reaches the amount you need; in press filling setting; the machine automatically memorizes the filling time; so the amount of filling is set;
F, [Manual]: manual state switching and use of electric filling key switch;
G, [Auto]: Automatic state switching and use of automatic filling key switch
Easy to use instructions: start the machine; put the container you need under the discharge port; start the filling setting and start the filling; when the material is filled to the position or weight you need; turn off the filling setting;This machine will automatically memorize your filling volume; then choose [automatic] or [manual] to start work;
The whole machine is guaranteed for one year; the pump is a diaphragm pump; it is a wearing part; and it is found that it needs to be replaced when the flow rate is reduced;
Performance and Features:
1. Imported single-chip motor control, stainless steel housing.composite GMP requirements.
2. LCD liquid crystal display, panel operation more convenient and simple
3. Outlet nozzle anti-drip design, filling high precision, accurate measurement.
4. Automatic counting function, effective control of the number of filling.
Parameters:
| Model | 1 head | 2 heads | 4 heads |
| Power supply | AC220V | AC220V | AC220V |
| Power | 30W | 60w | 120w |
| Filling range | 5ml-3500ml | 5ml-3500ml | 5ml-3500ml |
| Maximum suction | 2m | 2m | 2m |
| Maximum flow | 3.2L/min | 6.4L/min | 12.8L/min |
| Repeat error | <0.5% | <0.5% | <0.5% |
| Anti-drip function | yes | yes | yes |
| Power off memory function | yes | yes | yes |
| Total Weight | 4.5kg | 4.5kg | 4.5kg |
