Heat Wrapping Shrink Sleeve Label Machine 400BPM
Product Details:
| Place of Origin: | ZhangJiaGang City, JiangSu Province of China |
| Brand Name: | FillPack |
| Certification: | CE,ISO |
| Model Number: | SSL-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 700 USD/Set |
| Packaging Details: | Blanket cloth package |
| Delivery Time: | 5-10 days |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 50 Sets/Month |
|
Detail Information |
|||
| Model: | SSL-1200 | Type: | Steam Shrink |
|---|---|---|---|
| Material: | 304 Stainless Steel | Pressure: | 0.4-0.7Mpa |
| Steam Consumption: | 20-100kg | Speed: | 200-400 Bottles/min |
| Highlight: | heat shrink sleeve label machine,400BPM shrink sleeve label machine,400BPM shrink sleeve applicator |
||
Product Description

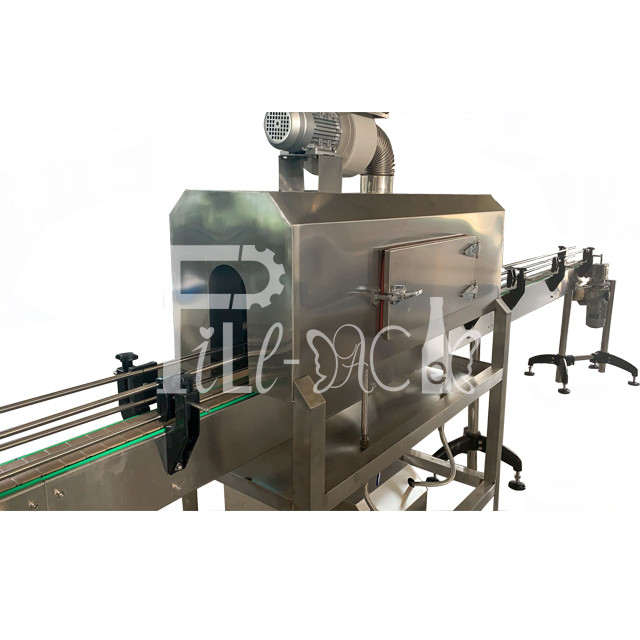

Semi automatic heat Sleeve label shrink tunnel wrapping labeling packaging machine
1.New type bottle label steam shrinkage tunnel, regarding differ and abnormal round,square,flat bottle ect bottle type, adjustment and maintain is convenient, shrinkage is flat. 2.Remained steam will be brought out to plant through 0.18KW air blower. Steam pressure is adjustable. Shrink effect is perfect and will not hurt the label. Need steam generator or boiler to work together. 3.Show winder in front and back will be easier for inside situation checking and maintenance; Show winder closing is by heat resistant telfon for well steam blocking inside; 4.Whole machine outter sheel adopt to stainless steel SUS304, save energy and accord with foodstuff safe criterion. 5.Bottom stainless steel water plate concentrate cool condensation water, can exculde via tube connected, working cirumstance don't affect, case body vision window fore and after each has two. 6.Whole machine adopt to water-proof design, made from stainless steel, easy to manipulation and maintain.
Steam shrink sleeve labeling machine
It is an assistant table for workers to stand by to inert sleeve labels into bottles; It is made of full stainless steel, nice, clean and easy for maintenance; Size: 1000*200*1100mm 2pcs Weight: 20kg

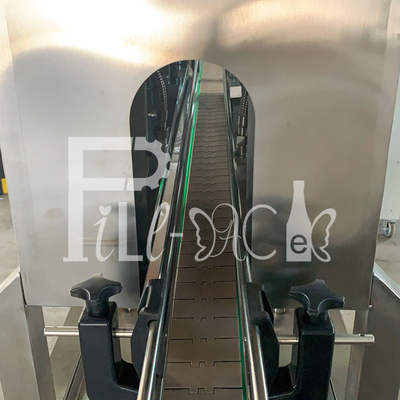

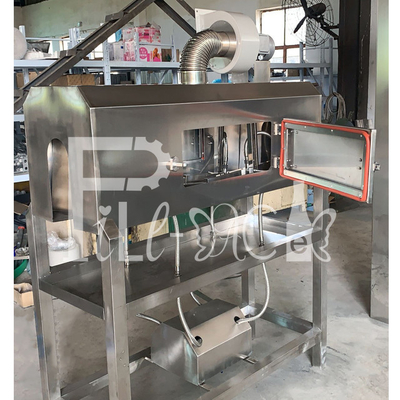

Show winder and steam jetting pipe
Steam generator
Cupboard style design, make the machine small and compact in structure, it is ideal choice for saving room. Design volume below 30L, within domestic checking-avoiding area. Inner set up water-steam sepatator, it will avoid the problem which steam with a lot of water, improve steam quality. Thermal tube connect with oven and flange, it will be easier for changing, maintenance. One step electric control, automatic oven control, only need to connect water and power, and then press start buton, the whole system will work by itself. Several safe working lock. The machine is set up with safe value, pressure protector to avoid explosion. Also the machine is set up with low water protector, when there is no water supply, the oven will stop to work. Leakage protector will help to save people, the power will be cut off when there is emergency. Electricity is clean than carbon.
Specifications:
