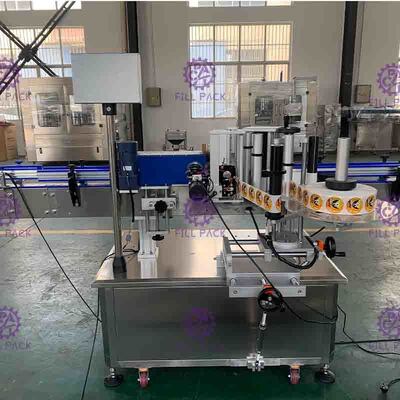

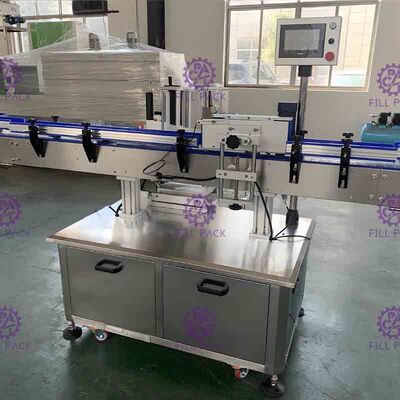

Single Head Automatic Bottle Labeling Machine , High Speed 40～180 b/min
Product Details:
| Place of Origin: | ZhangJiaGang city,JiangSu Province of China |
| Brand Name: | Fill Pack |
| Certification: | CE,ISO9001 |
| Model Number: | TB 630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set for round bottle labeling machine |
|---|---|
| Price: | USD$3500-5500/set |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 5 - 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 sets/month |
|
Detail Information |
|||
| Type: | Labeling Machine | Material: | Stainless Steel And High Quality Alloy |
|---|---|---|---|
| Labeling Accuracy: | ±1mm | Labeling Speed: | 40～180 B/min |
| Dimension(L*W*H): | L1600×W1200×H1500mm | Applicable Power: | 220V 50/60HZ |
| Weight: | 195Kg | Driven Type: | Electric |
| Highlight: | industrial labeling systems,automatic labeling machine |
||
Product Description
Stainless steel single head automatic round bottle labeling machine for adhesive labeling
Product Description
This round bottle labeling machine is applied for labeling for side flat face or side arc face of flat bottle, round bottle or boxes, such as the single-side labeling of cosmetic flat bottle or packaging boxes. It increases productivity and improves the quality of packaging. Powerful, one machine can achieve side labeling of 4 products (round bottle, flat bottle, square bottle, special-shaped bottle).The entire device has a number of adjusting devices that can be adjusted to meet the labeling requirements of different bottle diameters and label lengths.
Applicable scope:
- Applicable label:Self-adhesive labels, adhesive film, electronic monitoring code, bar code and so on.
- Applicable product:Products required for labeling on the lateral plane or on the arc
- Application industries:Widely used in food, toys, daily chemical industry, electronics, beverages, pharmaceuticals, metals, plastics, printing and other industries
- Application examples: Labeling of flat shampoo bottle, disinfectant shampoo bottles, mineral water bottles, MP4/MP3 box and so on.

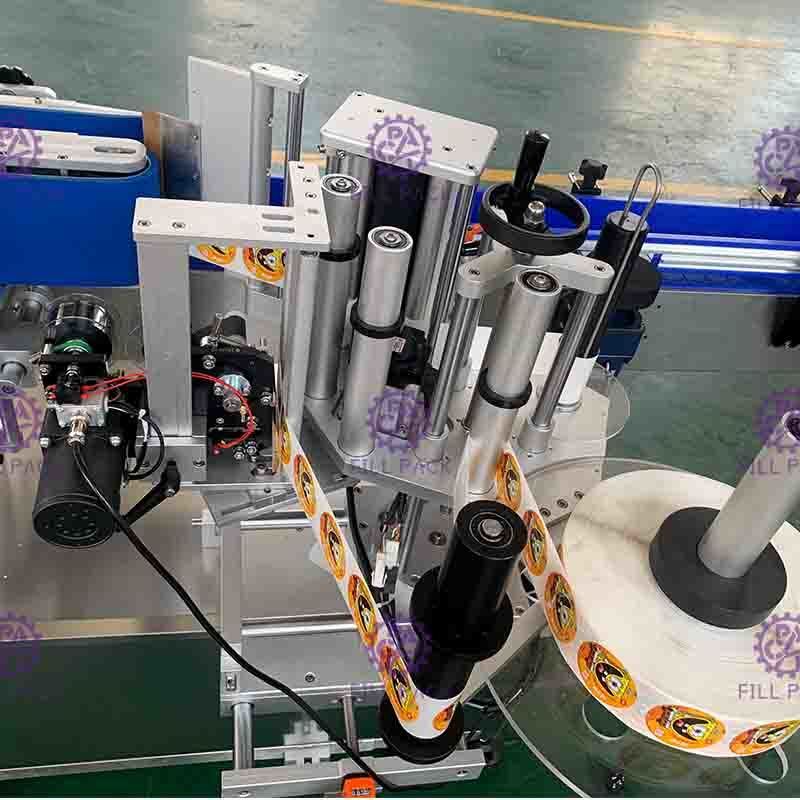

Detailed Images for round bottle labeling machine
-
Labeling accuracy:±1mm (Do not contain the tolerance of product and label itself).
-
Labeling speed:40～180 b/min(Associated with the product).
-
Dimension of applicable product:Width≥20mm,length≥20mm,20≤height≤350mm.
-
Dimension of applicable label:15≤width≤150mm,length≥10mm.
-
Dimension of whole machine:1600×1200×1500mm(length × width × height).
-
Applicable power:220V 50/60HZ；
-
Weight of machine:195Kg.
Electrical Components for round bottle labeling machine :
|
No |
NAME |
MODEL |
BRAND |
QTY. |
|
1 |
Labeling Motor |
85BYGH450B-2 |
BaiShan-Shenzhen
|
1pc |
|
2 |
Motor driver |
Q2HBCHE88 |
1pc |
|
|
3 |
Bottle transferring motor |
85BYGH450B-2 |
1pc |
|
|
4 |
Motor driver |
Q2HBCHE88 |
1pc |
|
|
5 |
Conveyor motor |
YN90-120 15G30 |
Weitewei-BeiJing
|
1pc |
|
6 |
Conveyor motor gearbox |
1pc |
||
|
7 |
Bottle devision motor |
YN70-15 10G20 |
1pc |
|
|
8 |
Bottle devision motor gearbox |
1pc |
||
|
9 |
Bottle checking electric eye |
FS-V11 |
Keyence-Japan
|
1pc |
|
10 |
Labeling electric eye sensor |
/ |
1pc |
|
|
11 |
Label checking electrical eye |
/ |
1pc |
|
|
12 |
PLC |
DVP-14SS |
Delta-Taiwan |
1pc |
|
13
|
Touch screen |
PWS5600S-S |
Haiteke-Taiwan |
1pc |
Delivery time & Payment
Delivery:
The round bottle labeling machine will be made within 15 working days after the bottle design are confirmed.
Payment:
30％ T/T deposit within five days after the contract is signed against invoice of the seller. The balance of 70％ T/T before shipment.
Guarantee
We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client. And send engineer to client’s company with client’s provision for flight charge and accommodation. Help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff to china, help them training.
