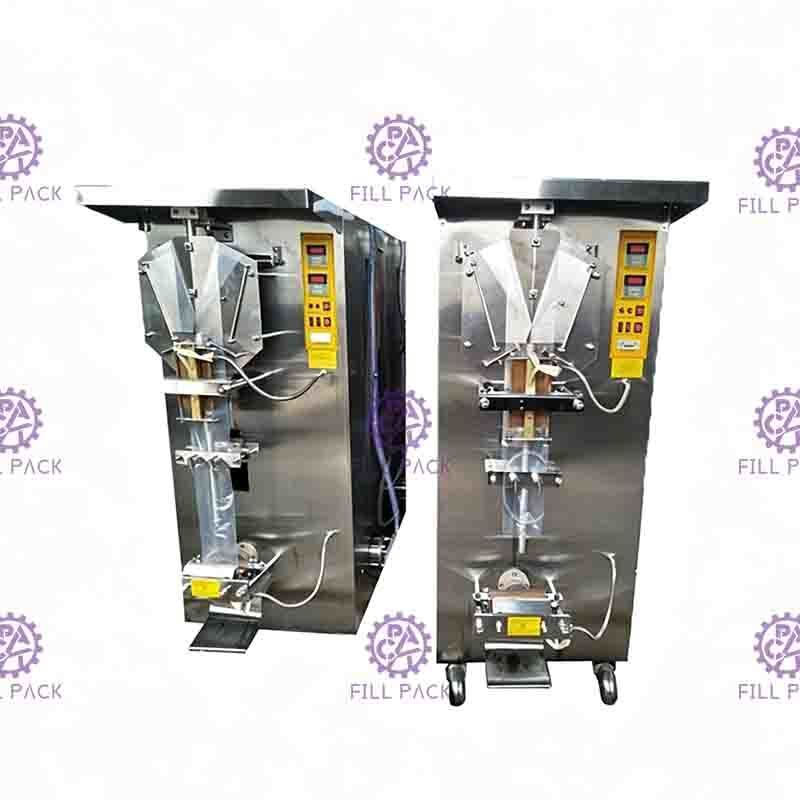

SUS304 Automatic Photocell 1300bags/H Water Sachet Packing Machine
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILL PACK |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | 500B1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $1995/set |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 15-20days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Material: | SUS304 | Power: | 2.1KW |
|---|---|---|---|
| Bag Length: | 50-150mm | Bag Width: | 65-150mm |
| Packaging Film Width: | 150-320mm | Packing Speed: | 1100-1300bags/h |
| Highlight: | 1300bags/h water sachet packing machine,automatic photocell water sachet packing machine,SUS304 sachet water packaging machine |
||
Product Description
Composite film Sachet / pouch / bag filling machine for oil / juice / honey /milk
Description:
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: three side sealing and intermittent
3, Function: auto complete Bag-making, filling, sealing, printing, cutting and counting

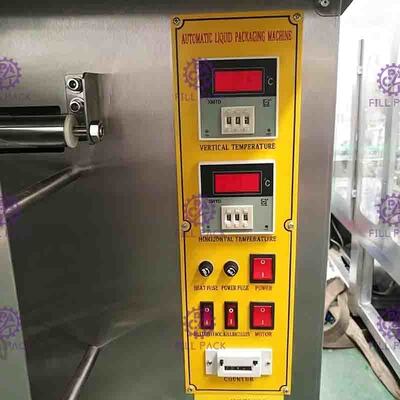

4, Control system: microprocessor and automatic photocell
5, whole machine with stainless steel covering, With foot wheels for easy transportation;
Features:
1.The whole process is completed automatically and highly efficient.
2. Either under set length control or photoelectric color tracing, bag length is set and cut in one step.
3. The temperature is under independent PID control, more suitable for different packing materials, the tolerance is ±1%.
4. Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
5. The driving system is simple and reliable, and maintenance is easy.
6. Main parts are made of stainless steel, meet the GMP standard.
7. Automatic self support lubricating system, the machine can continuous more than 24 hours.
8. Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.
General:
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean
milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: back sealing,horizontal sealing
3, Function: film sterilization,auto complete Bag-making, filling, sealing, printing, cutting and
counting
4, Control system: microprocessor and automatic photocell
5, Whole machine with stainless steel covering, With foot wheels for easy transportation;
Technical specifications:
| Model | 500B1 | 1000B1 |
| Bag length (mm) | 50-150 | 50-250 |
| Bag width (mm) | 65-150 | 65-175 |
| Packaging film width (mm) | 150-320 | 150-380 |
| Package volume (ml) | 0-500 | 0-1000 |
| Packing speed (bags/h) | 1100-1300 | 1100-1300 |
| Power (kw) | 2.1 | 2.5 |
| External dimensions (mm) | 1050*850*2050 | 1050*850*2050 |
| Weight (kg) | 370 | 380 |
Packaging film parameters:
| Material: | Composite film |
| Printing: | 1-7 colors |
| Width: |
320mm (suitable for up to and including 500ml); 350mm (suitable for 1000ml); 450mm (suitable for 2000ml) |
| Thickness: | 80micron,100micron,120micron |
| Sachet volume: | 250ml,330ml,400ml,500ml,1000ml,2000ml |
| 1kg film could make how many pcs 500ml sachet with 80micron thickness: | |
| 80micron thickness: | 1kg roll film could make about 280 sachets |
| 1kg film could make how many pcs 1000ml sachet with 100micron thickness: | |
| 100micron thickness: | 1kg roll film could make about 120 sachets |
| 1kg film could make how many pcs 2000ml sachet with 120micron thickness: | |
| 120micron thickness: | 1kg roll film could make about 53 sachets |
| Application: | water pouch packaging, water sachets, pure water packaging, mineral water packaging, flavoured water bag packaging, Juice packaging, water bags packaging |
