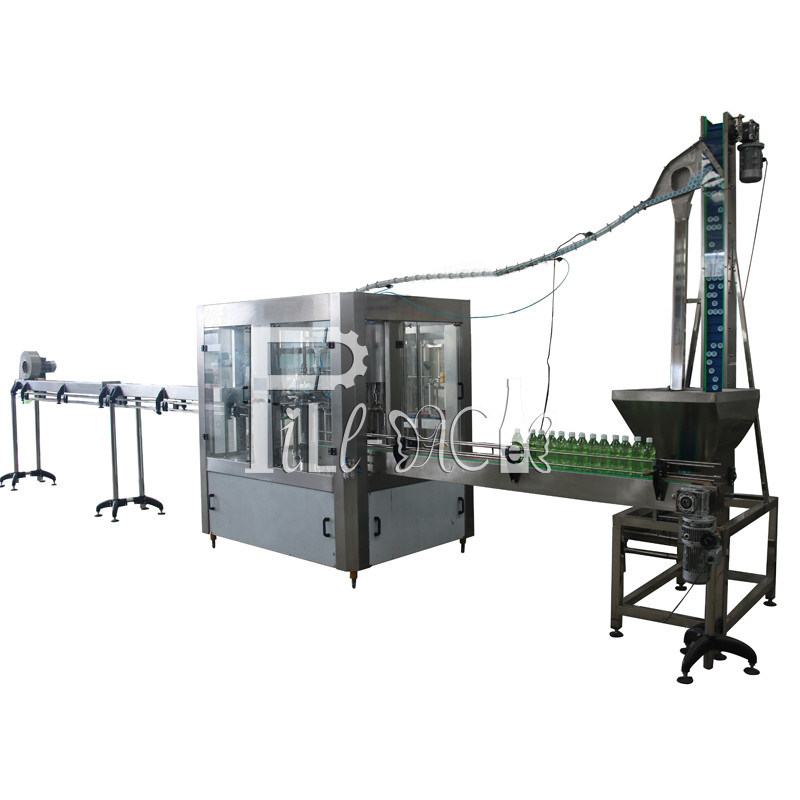

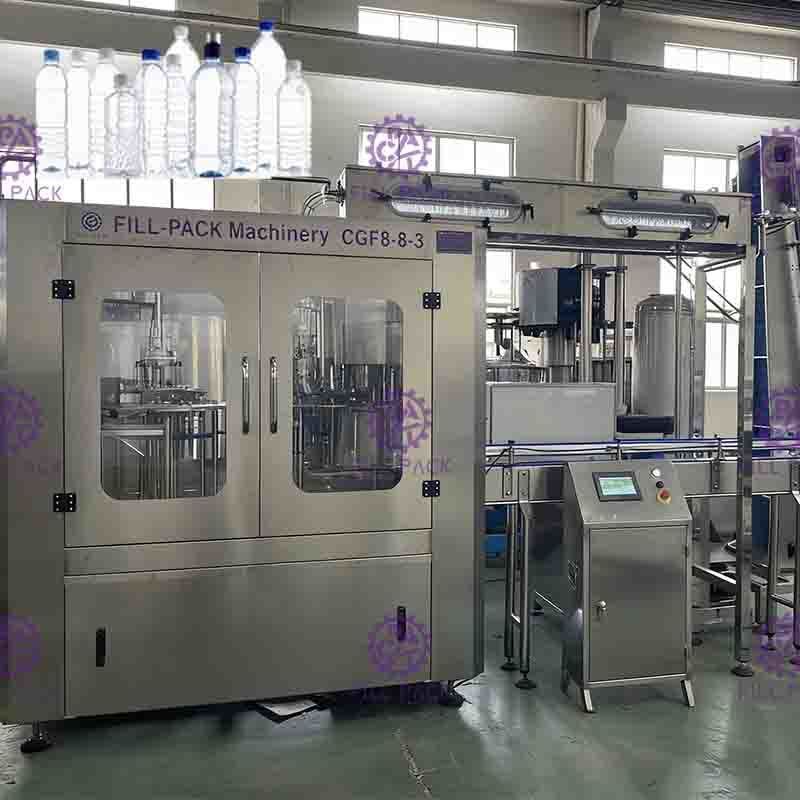

PLC Control PET Rinsing Filling Capping Machine With Touch Screen
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | CGF8-8-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 11000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | TT & L/C |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Suitable Bottle Size: | 0.3-2L PET Bottle | Cap Style: | Plastic Screw Cap |
|---|---|---|---|
| Capacity: | 3000BPH | Control: | PLC Control With Touch Screen |
| Processing: | Japan & Germany | Warranty: | 1 Year For Spare Parts |
| Highlight: | PLC Control rinsing filling capping machine,TUV rinsing filling capping machine,PET washing filling and capping machine |
||
Product Description
Competitive price pure water bottle washing filling capping line
1. The PET 3 in 1 rinsing filling capping machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
2. The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used.The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

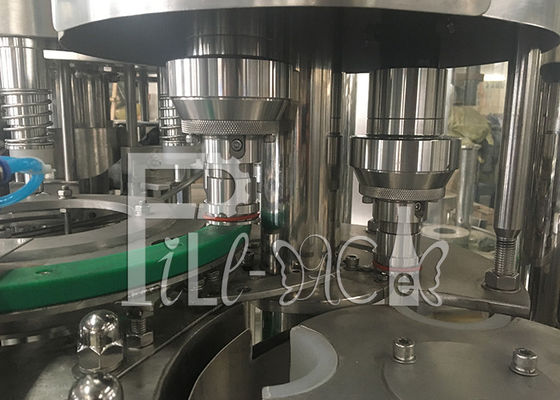

4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
5. The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
6. The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
-Technical Parameters-
|
Model
|
CGF8-8-3
|
Dimensions
|
1800*1500*2300mm
|
|
Capacity
|
2000BPH
|
Bottle Type
|
PET Bottles
|
|
Filling Range
|
200ml---2000ml
|
Cap Type
|
Plastic Screw Cap
|
|
Voltage
|
220/380V
|
Suitable For
|
Non-carbonated Water
|
