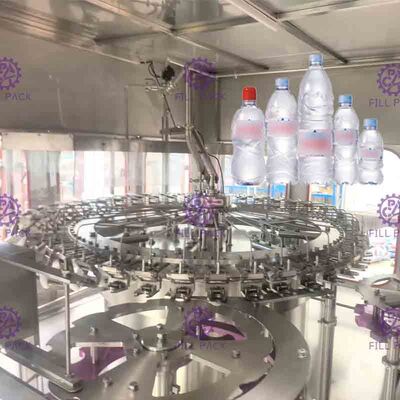

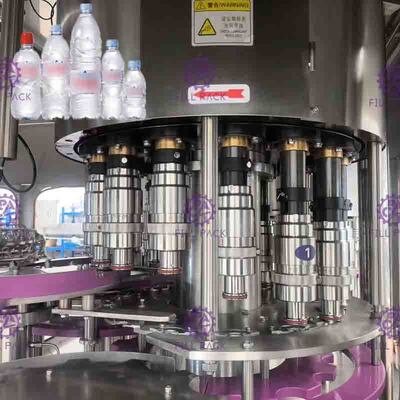

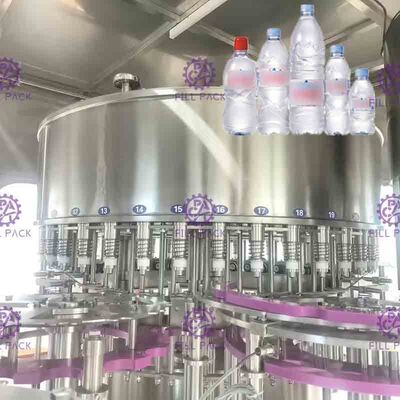

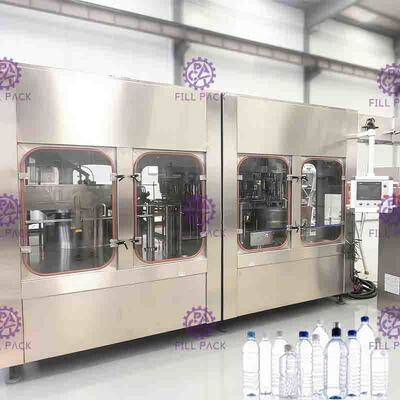

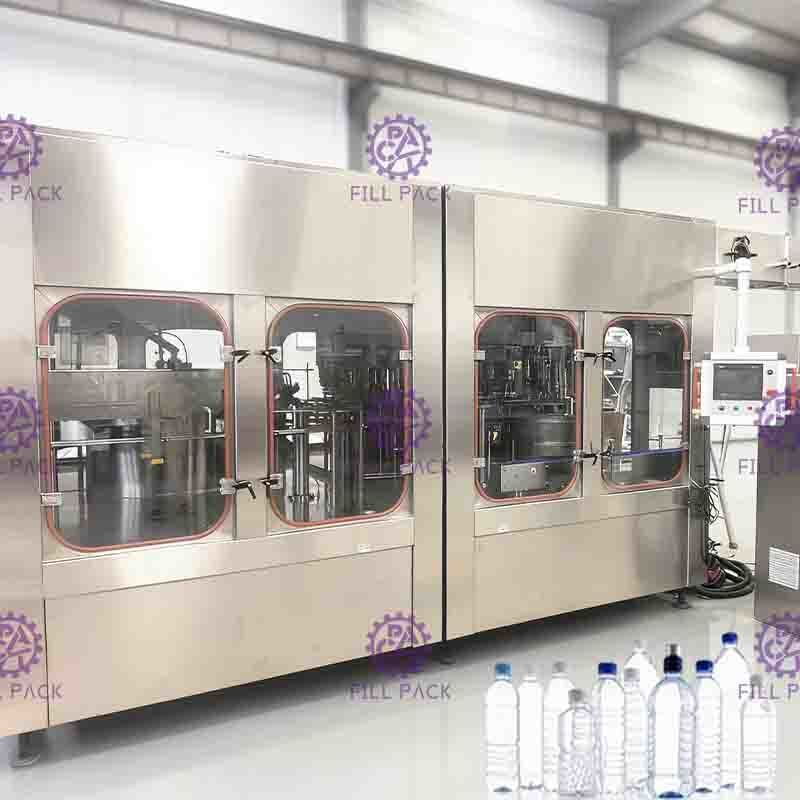

500ml / 1L / 2L PET Drinking Water 3 In 1 Monoblock Rinsing Filling Capping Equipment / Plant / Machine / System / Line
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | CGF40-40-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-40000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 Sets Per Months |
|
Detail Information |
|||
| Capacity: | 3000-24000 Bph | Fuction: | Washing Filling Capping 3 In 1 |
|---|---|---|---|
| Washing Head: | 40 Heads | Filling Head: | 40 Heads |
| Capping Head: | 10 Heads | Dimension(L*W*H): | 3350*2680*2400 Mm |
| Highlight: | water bottle filling machine,water filler machine |
||
Product Description
Decription of CGF40-40-10 Pure drinking water PET bottle 3 in 1 bottling line
>>>Characteristics:.
★ The PET 3 in 1 rinsing filling capping machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
★ The PET 3 in 1 rinsing filling capping machine is used in production of non-soda drink of mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
★ PET 3 in 1 rinsing filling capping machine Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.
★ PET 3 in 1 rinsing filling capping machine Adopted Germanyanti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
This PET 3 in 1 rinsing filling capping machine is the highest degree of accuracy of 3 in 1 machine, it is important for the machine to run stably and the product quality.
>>>Overview
★ CGF40-40-10 three in a normal pressure filling machine is mainly composed of a transmission part, dial, filling and sealing cap part, part of several parts, transmission system and stepless speed regulating device etc.
★ CGF40-40-10 three in a normal pressure filling machine is mainly composed of a transmission part, dial, filling and sealing cap part, part of several parts, transmission system and stepless speed regulating device etc.
1. conveyor belt part
The bottle is sent to the three in one filling machine in the last process. After the filling and sealing of the foil, the bottle is sent to the next process by a speed adjustable conveyor belt. The conveyor chain plate is made of stainless steel.
2. driving plate part
The bottle is sent to the three in one filling machine in the last process. After the filling and sealing of the foil, the bottle is sent to the next process by a speed adjustable conveyor belt. The conveyor chain plate is made of stainless steel.
2. driving plate part
|
Parameters
|
|
|
Model
|
CGF40-40-10
|
|
Capacity(B/H)
|
20000
|
|
Bottle size
|
Neck :φ50-100mm:Height:150-320mm
|
|
Water pressure
|
0.18-0.25Mpa
|
|
Water consumption(kg/h)
|
1000
|
|
Washing station
|
18
|
|
Loading-Dripping-discharge station
|
2-2-2
|
|
Filling precision
|
<+1MM
|
|
Air pressure
|
0.5Mpa
|
|
Air consumption (m³/min)
|
0.3
|
|
Power(kw)
|
7
|
|
Weight(kg)
|
4000
|
|
Dimension(L*W*H)(mm)
|
3860*3150*2400 mm
|
