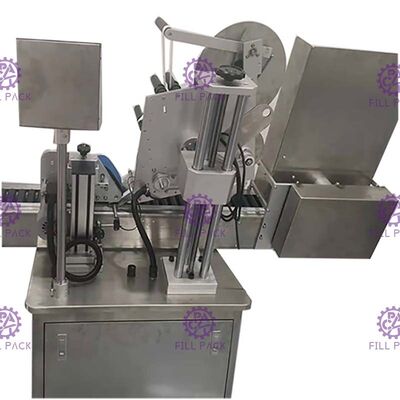

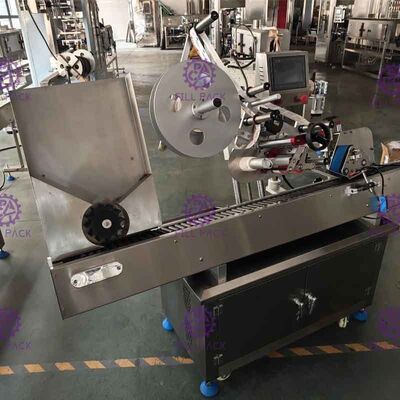

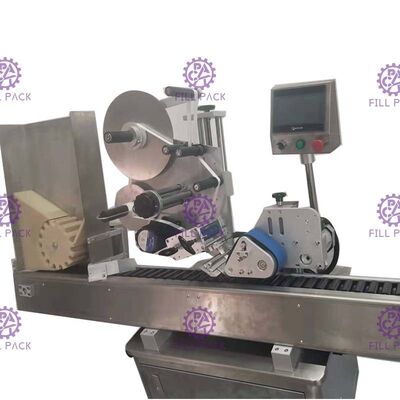

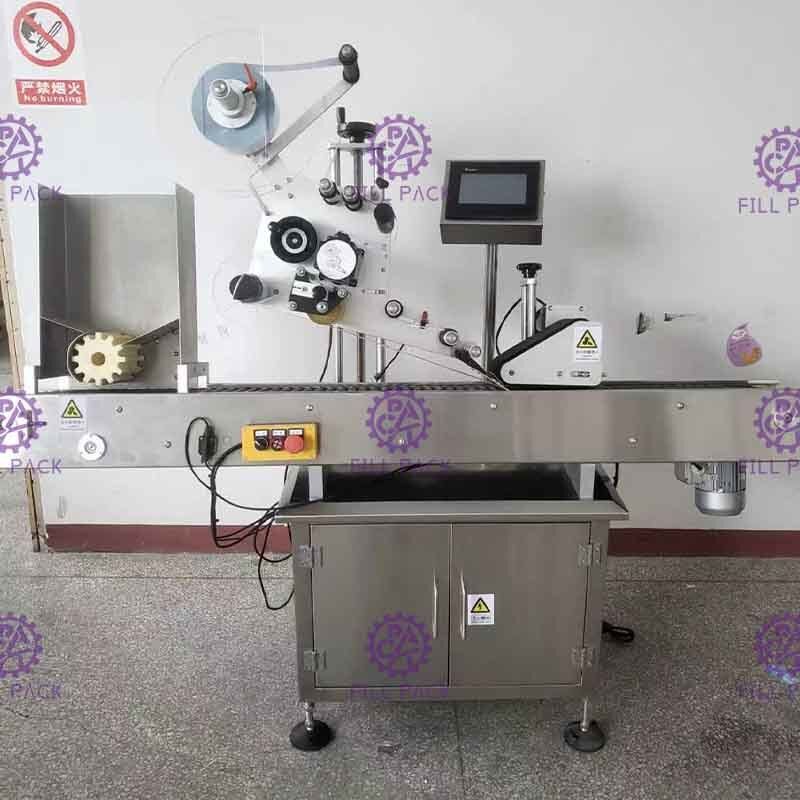

Self Adhesive PET / Plastic Sticker Round Bottle Labeling / Labeler Machine / Equipment / Line / Plant / System / Unit
Product Details:
| Place of Origin: | ZhangJiaGang,JiangSu,China |
| Brand Name: | Fill Pack |
| Certification: | CE,ISO |
| Model Number: | T-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD$3500-5500/set for glass bottle labeling machine |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 5 - 15days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 sets/month |
|
Detail Information |
|||
| Voltage: | 220V/380V 50HZ, 220V 50/60HZ | Dimension: | 2000*550*1600mm |
|---|---|---|---|
| Power: | 1.5kw | Weight: | 180Kg |
| Highlight: | automatic labeling machine,sticker labeling machine |
||
Product Description
Single side horizontal adhesive labeling machine for flat bottles
Assuring You of Our Best Machines
We are committed to provide you with the exceptional labeling machine and helping you attain your requirements.
Please feel free to contact us for more information of interest.
>>> Basic using:
For horizontal flat things sticker labeling, the use of horizontal transmission, horizontal labeling way to increase stability, improve the labeling efficiency.
The machine have the automatic identification function is enabled automatically according to the different products with different label head work.
>>>Application:
★1, For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
★2, Applicable products:flat things or bottles attached to the surface membrane of the small label or product.
★4, Application: book, flat glass bottles, flat plastic bottles and so on.
>>>Working Process:
1,the product of separate flat bottle, put on the conveyor belt
2,the sensor detects the product passes the signal returned to the labeling control systems in place to control the corresponding motor control system sends label affixed to the product and to be posted cursor position
3, the product flows through the overlying standard device, covered with a standard drive product rotation, a label attached to the action is completed.
|
Single side horizontal adhesive labeling machine for flat bottles
|
|
|
Model
|
T-130
|
|
Output speed
|
60-350 PCS/min (size and length of the label depends on the specific circumstances)
|
|
Hight / Thickly label object:
|
30-210mm / 20-120mm
|
|
Label Hight / Label length
|
15-200mm / 25-300mm
|
|
Pastes the sign precision
|
±1mm(Except for the error of the label and the label itself)
|
|
Roll inside / outside diameter
|
76mm / 300mm
|
|
Power supply
|
220V 1PH 50/60HZ, 1.5KW
|
|
Net Gross Weight
|
180KG 250KG
|
|
Dimensions (mm) (L * W * H)
|
2000mm * 550mm * 1600mm
|
|
Sensor
|
Transparent sensor suitable for transparent labels
|
|
Remarks:
We also have the horizontal adhesive labeling machine for round bottles, penicillin bottles, ampoule bottles, and oral liquid bottles, we can customize the labeling machine according to customer requirement.
|
|
|
If you need shrink sleeve labeling machine, cold glue labeling machine or OPP hot glue labeling machine, please check them on our website or contact the sales consultant directly.Please find the contact information at contact us.
|
|
