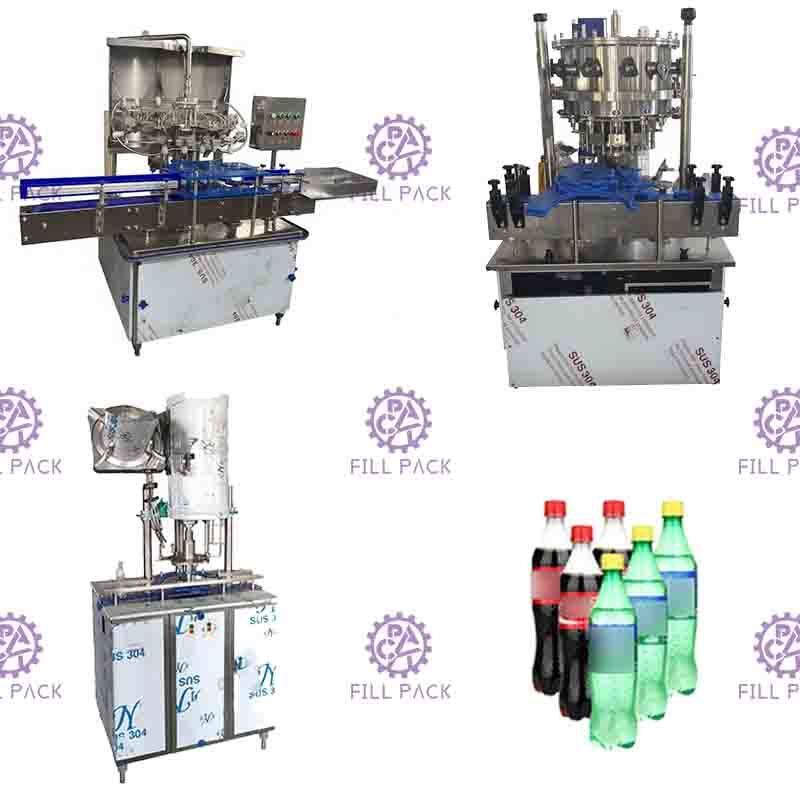

4000BPH 0-2L PET Bottle Carbonated Drink Filling Machine Line Plant Soft Drink Coca Cola Soda Water Production Line

Product Description

4000BPH 0-2L PET Bottle Carbonated Drink Filling Machine Line Plant Soft Drink Coca Cola Soda Water Production Line

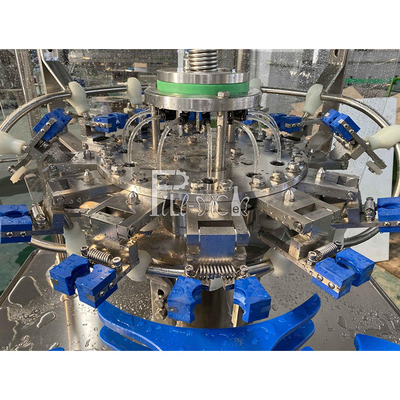

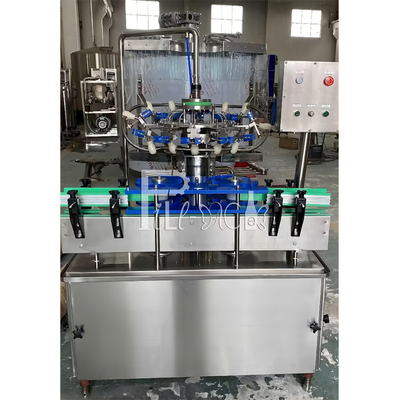

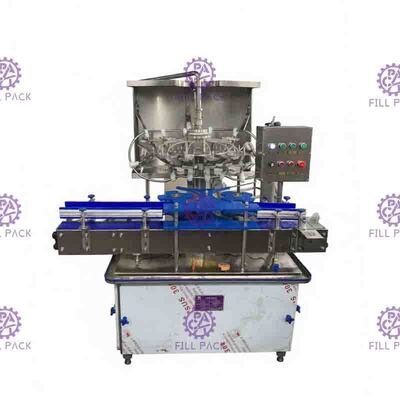

Rotary bottle washer

Principle:

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

Parameters:

Rising heads: 12 pcs

Capacity: 0-3000BPH (each bottle rinsing time 4s)

Power: 0.92KW

Dimension: 1050*1050*1900mm

Weight: 450KG

Applicable bottle: D∮50-100mm,H 50-350mm

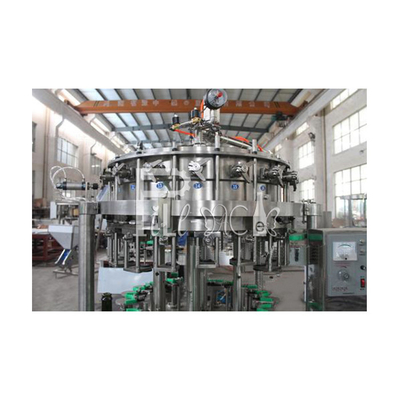

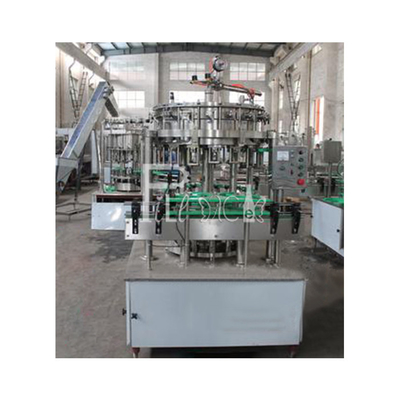

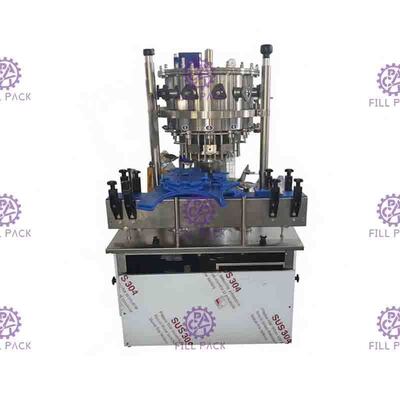

Balance pressure filler

This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling gas-containing drink, such as aerated water, cola sparkling wine , fruit tea and so on .It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size.

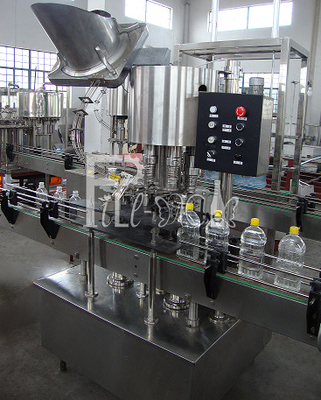

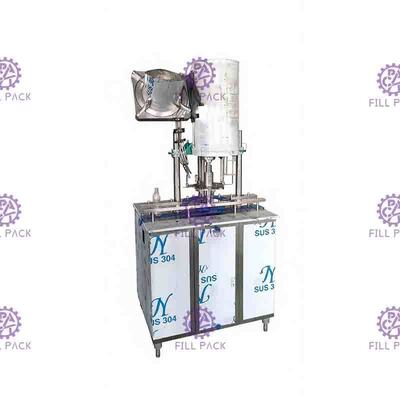

4 heads sealing machine

Principle:

The machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts. Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping.

The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is an separate part. Change cap is only need to change capping head, easy for change and operation. The whole machine is made from SUS304, long shelf time.

Parameters:

Capacity:4000BPH

Capping head: 4 pcs

Power: 0.75KW

Dimension: 1100*900*2500mm

Applicable bottle:Bottle height<300mm, bottle diameter<90mm, cap<30mm

Weight: 900KG

Flow chart:

Application:
