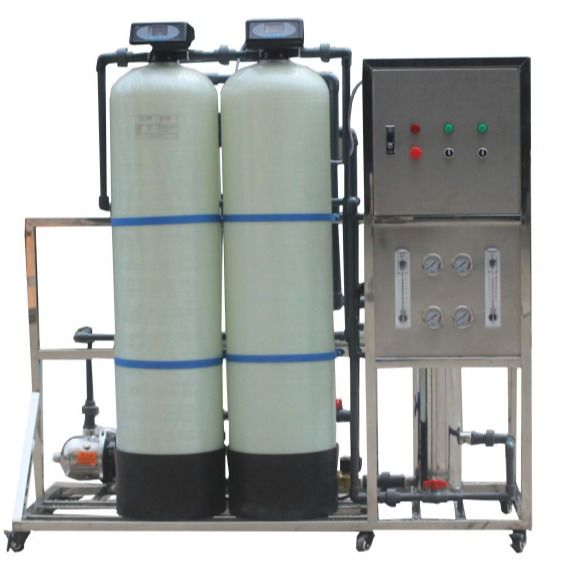

500LPH Monoblock UF Drinking Water Treatment Machine
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 |
| Model Number: | UF-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1400/set |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 25 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Model:: | UF-500 | Capacity:: | 500 Liters Per Hour |
|---|---|---|---|
| Pre Filters:: | Multimedium Filter,Active Carbon Filter | Packing Size:: | 1400*600*1600mm |
| Packing Type:: | Wooden Case | Pump Power:: | 0.37kw |
| Main Frame Of UF: | SUS304 | Raw Water Pump: | Nanfang |
| Highlight: | monoblock drinking water treatment machine,500LPH drinking water treatment machine,monoblock osmosis drinking water system |
||
Product Description
Product introduction:
Ultrafiltration: it is a process of physical screening of liquid with different pore sizes of ultrafiltration membrane driven by pressure.
Basic principle of ultrafiltration: under a certain pressure, when the stock solution flows through the membrane surface, many small pores on the surface of the ultrafiltration membrane only allow water and small molecular substances to pass through and become the permeate. The substances with a volume greater than the micro pore size on the membrane surface in the stock solution can only be intercepted in the incoming liquid measurement of the membrane and become the concentrated solution, so as to realize the purpose of purification, separation and concentration of the stock solution.
Technical parameter:
| Items | Name | Specifications and model | Material | Brand&Origin | Unit | Qty. |
| I | Raw water lifting unit | |||||
| 1 | Level controller | ST-70AB | assembly | PRADAR | suit | 1 |
| 2 | Raw water pump | CHL2-30/380V, P=0.37kw,Q=0.5T,H=28M |
SS304 | NanFang | set | 1 |
| II | Multimedium filter | assembly | FILLPACK | |||
| 1 | Multimedium filter tank | φ250*1400mm | FRP | FILLPACK | set | 1 |
| 2 | Central tube, Up and below distribution | JD209/JD210 | ABS | RUNXIN | suit | 1 |
| 3 | Automatic operation valve | TMF71P | assembly | RUNXIN | set | 1 |
| 4 | Quartz sand | NO. 1-4 | assembly | NingBo | KG | 100 |
| III | Active carbon filter | assembly | FILLPACK | |||
| 1 | Filter tank | φ250*1400mm | FRP | FILLPACK | set | 1 |
| 2 | Central tube, Up and below distribution | JD209/JD210 | ABS | RUNXIN | suit | 1 |
| 3 | Automatic operation valve | TMF71P | assembly | RUNXIN | set | 1 |
| 4 | Activated Carbon | 10-24MU | assembly | Chengde | kg | 25 |
| IV | Cartridge filter | assembly | FILLPACK | |||
| 1 | Cartridge filter | 20INCH *1 | SS304 | FILLPACK | set | 1 |
| 2 | PP cotton | 20INCH / 5 um | polypropylene | FILLPACK | pcs | 1 |
| 3 | Pressure gauge | 0-0.1MPa | SS304 | YYST | pcs | 1 |
| VI | UF system | |||||
| 1 | Ultrafiltration membrane element | AQU90 | PVC | AQUCELL | pcs | 2 |
| 2 | Water inlet solenoid valve | DN15/AC220V | BRASS | YONGCHUAN | pc | 1 |
| 3 | Washing solenoid valve | DN15/AC220V | BRASS | YONGCHUAN | pc | 1 |
| 4 | Pressure gauge | 0-0.6MP/0-3MPA | SUS304 | YYST | pcs | 1 |
| 6 | Flowmeter for produced water | LZD-40 | assembly | Shunhuan Instrument | pcs | 1 |
| 7 | Flowmeter for salinity water | LZS-25 | assembly | Shunhuan Instrument | pcs | 1 |
| 8 | Main frame of UF | Stainless Steel | SS304 | FILLPACK | suit | 1 |
| VII | Connecting pipe | |||||
| 1 | Tubing / fittings / valves | DN20/DN25 |
UPVC/ GB |
XieYu/China | suit | 1 |
| VIII | Pure water tank | |||||
| 1 | Level controller | ST-70AB | assembly | PRADAR | suit | 1 |
| IX | Electrical system | |||||
| 1 | control cabinet | BD-4.0 | matching | FILLPACK | suit | 1 |
| 2 | breaker | suit | 1 | |||
| 3 | Air switch | assembly | CHNT | suit | 1 | |
| 4 | AC contactor | suit | 1 | |||
| 5 | Thermal relay | suit | 1 | |||
| 6 | Intermediate relay | suit | 1 | |||
| 7 | Button / switch | suit | 1 | |||
| 8 | wire | suit | 1 |
Machine advantages:
1) The body is small and exquisite, does not occupy space, and saves workshop space.
2) Fully automatic running.
3) 24-hour operation, multi-machine operation by one person
4) One-time investment when purchasing the machine (8-15 years of use)
5) The product is beautiful and intelligent (improving the company's brand)
6) High precision, in line with national pharmaceutical industry standards
7) 304 stainless steel material, in line with food safety, the whole machine uses big brand high-quality accessories

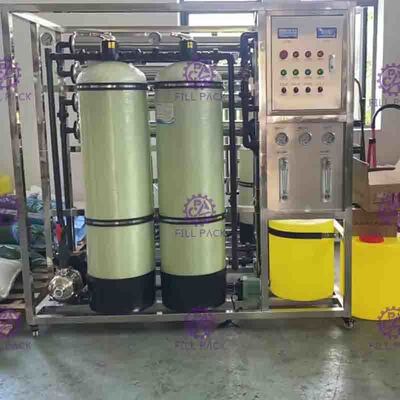

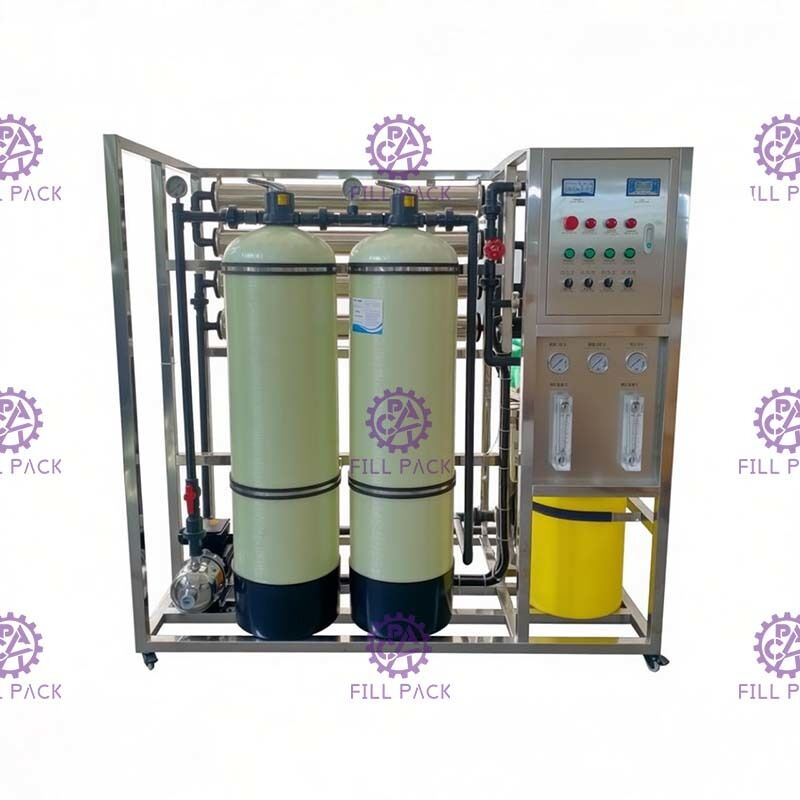

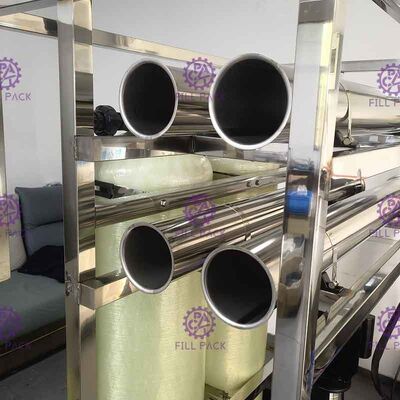

Products samples:
