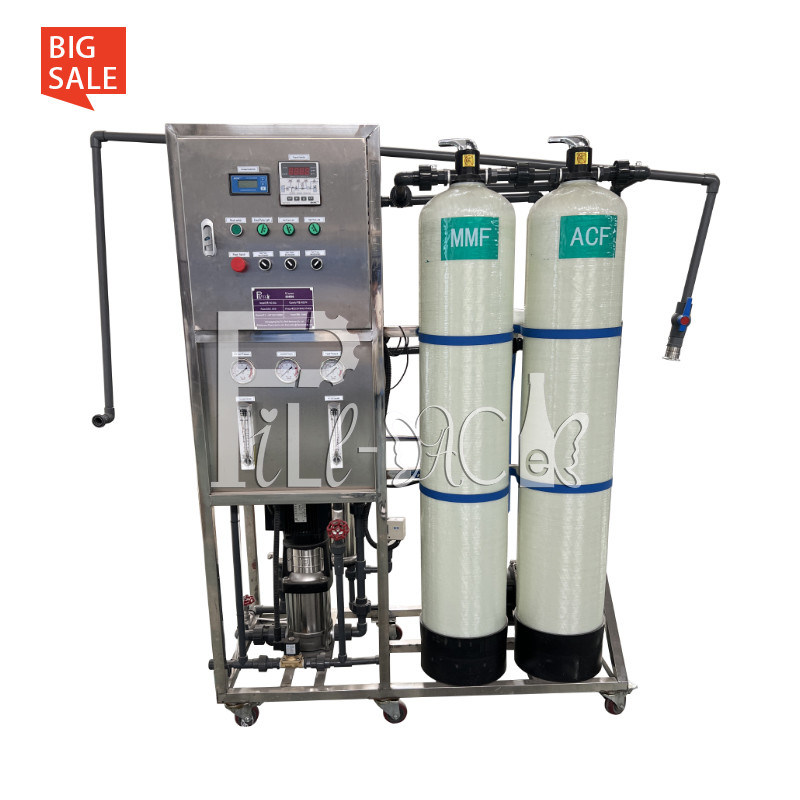

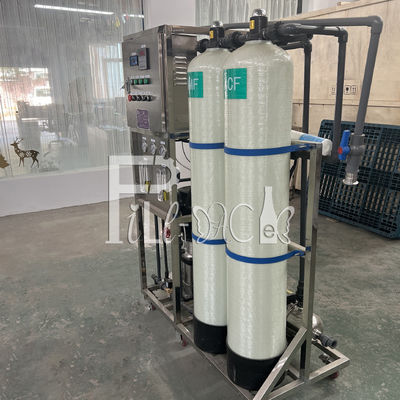

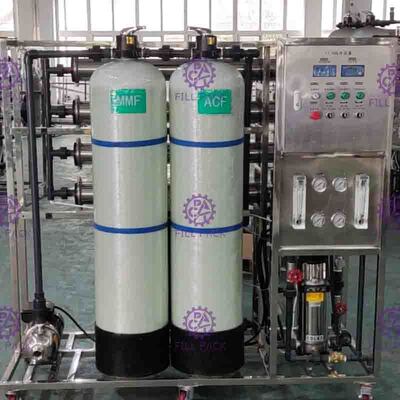

Stainless Steel 500lph Drinking Water Treatment System With 4040 Membrane
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE/ISO9001 |
| Model Number: | RO-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 1650USD per set |
| Packaging Details: | the Drinking water RO equipment is packed by wooden case. |
| Delivery Time: | 25 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Condition: | New | Power: | 0.55KW |
|---|---|---|---|
| Productivity: | 500L/Hour | Rated Inlet Water Flow Rate: | 2.5 |
| RO Membrane: | VONTRON | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Warranty: | 1 Year |
| Desalination Rate: | 98% | Material: | Stainless Steel |
| Highlight: | 4040 Membrane Water Treatment System,500LPH water filter plant machine,Stainless Steel water filter plant machine |
||
Product Description
500LPH Drinking water RO Reverse Osmosis water treatment machine / system with 4040 membrane

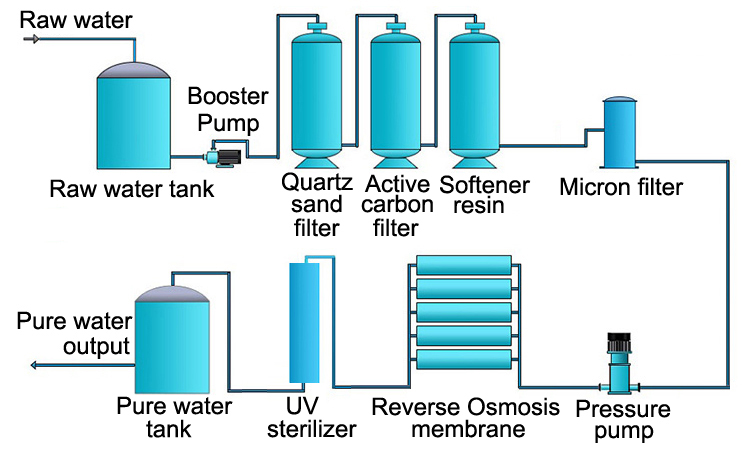

Process flow
Raw water → Raw water tank → Sand filter → Activated carbon filter → Water softener → Precision filter → RO menbrane → UV sterilizer → Pure water tank
This system adopts REVERSE OSMOSIS membranes, the rate of removed salt is 97%, and shapes the special character. The whole system can get rid of bacterial virus, heavy metallic irons, salt. Radioactive elements, organic pollutant each is 99.99%, 95%, 99%, 95%, the quality of water sweet, clean. Also get rid of poison harmful material in source water , such as four chlorination carbons, benzenese, hydrocarbon, agrochemical, and lead, mercury ,chrome ...etc other radioactive element all Be tested a limit the following.
|
Raw water pump
|
provide the pressure to quartz sand filter/active carbon filter/ water softener
|
|||
|
Sand filter
|
Get rid of turbidity, suspended matter
|
|||
|
Active Carbon filter
|
Remove the color, free chloride, organic matter, harmful matter, ect.
|
|||
|
Softener
|
Exchange "ions" of calcium and magnesium with the most common and easiest method.
|
|||
|
Precision filter
|
Prevent large particles into RO membrane, accuracy is 5um
|
|||
|
High pressure pump
|
Provide the high pressure to RO membrane
|
|||
|

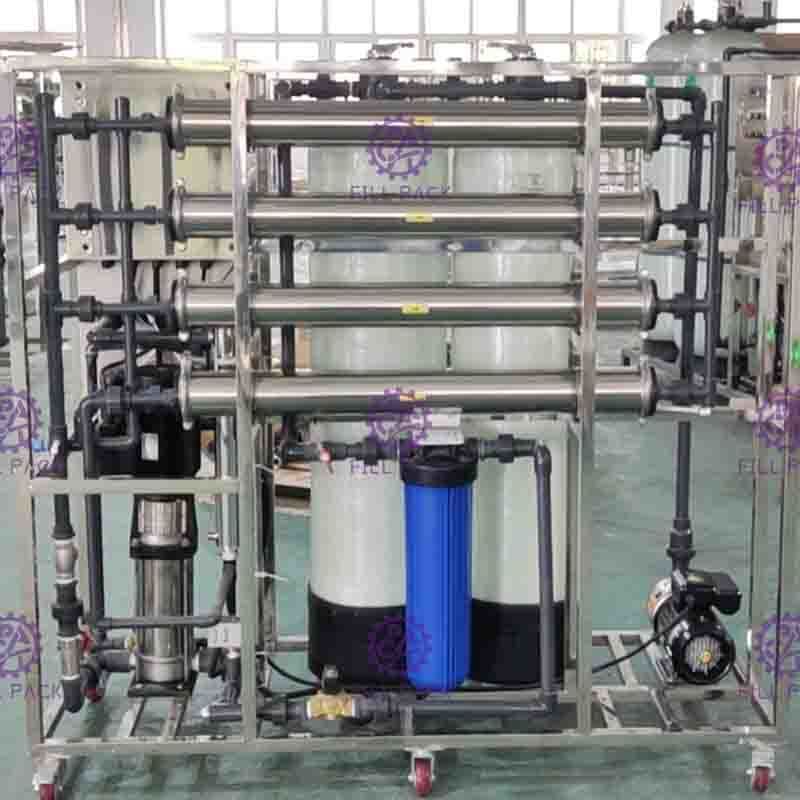

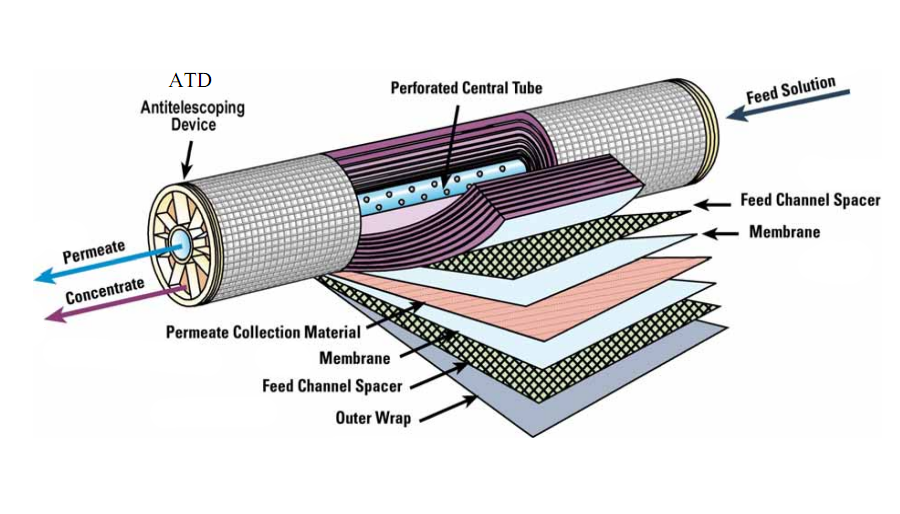

RO system
|
Main part of the plant. The RO membrane's desalting rate can reach 97% and above, removing over 99% ions.
|
|||

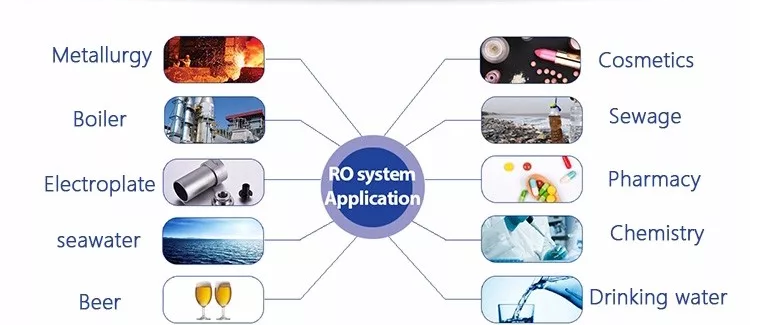

Application:
Main Technical Parameters
|
Model
|
Capacity (LPH)
|
Membrane Quantity
|
Size(L*W*H) (mm)
|
Weight (Kg)
|
Motor Power(KW)
|
|
RO500
|
500LPH
|
4040*2
|
1400*600*1600
|
150
|
1.47
|
