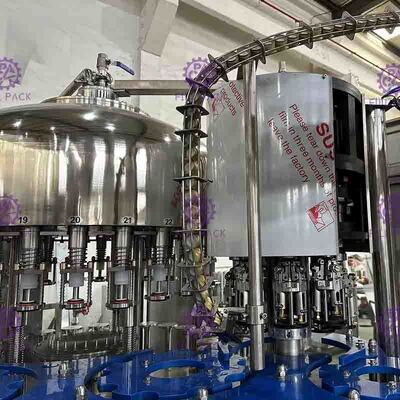

Automatic Tiny Negative Pressure PET Bottle Filling Machine For Soy Sauce
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | WFGF12-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 25 Working Days After Deposit |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 20Sets Per Months |
|
Detail Information |
|||
| Bottle Type: | PET Bottle With Flip Top Cap | Filling Material: | Soy Sauce, Vinegar, Alcohol, Etc. |
|---|---|---|---|
| Production Capacity: | 3000BPH | Control: | PLC Control |
| Capping Type: | Pneumatic Capping | Filling Pressure: | Tiny Negative Pressure |
| Highlight: | liquid filler equipment,water bottling equipment |
||
Product Description
Automatic Tiny Negative Pressure PET Bottle Filling Machine For Soy Sauce
Quick details
1. Processing type: Soy sauce filling
2. Suitable bottle: PET bottle with pull-cap
3. Filling pressure: Tiny negative pressure
4. Production capacity: 3000BPH
Description
1) Soy sauce filling machine contains bottle filling and capping part, full automatic with PLC control.
2) The parts which contact with material are made into stainless steel 316 and special corrosion-resistant materials.
3) And soy sauce filling mouth ensures non-drip. It has advantages such as, high automation, reliable performance, quick production speed, accurate filling precision, simple operation, good adaptability and so on. It is widely used in food and non gas beverages (such as water,juice, tea drinks, soy sauce, wine, vinegar).
4) The soy sauce filling machine is suitable for long neck PET bottle with 25mm neck diameter

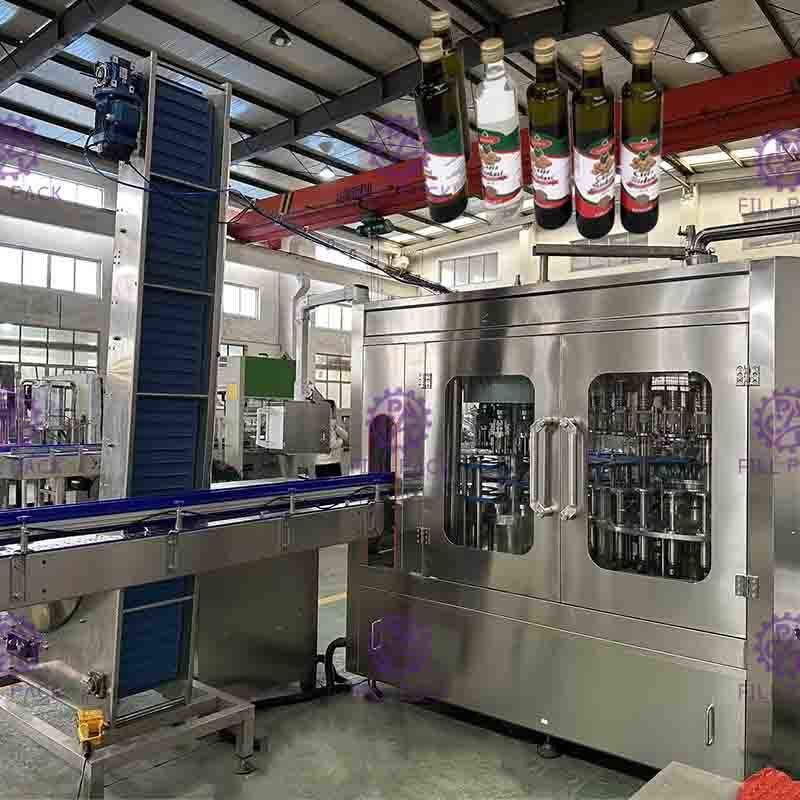

5) The empty PET bottle is onveyed on the conveyor,then goes through the washing and filling part, goes out through the conveyor.
6) Soy sauce filling machine is designed only with bottle filling and capping parts as our customer's need.
Soy sauce filling machine---Technical parameter
| Model | WFGF12-4 |
| Production capacity | 3000BPH |
| Dimension | 1910*1590*2120mm |
| Power | 6.21Kw |
| Weight | 2600Kg |
Transmission
Main transmission adopting frequency conversion motor will be sent to decelerate box through stair belt, and then lead the whole machine running.
Safety device
Operators should be familiar with all the safety devices and other ways in order to avoid personal injury and damage to machinery.
There is a emergency stop switch on the operate panel.
Bottle flow

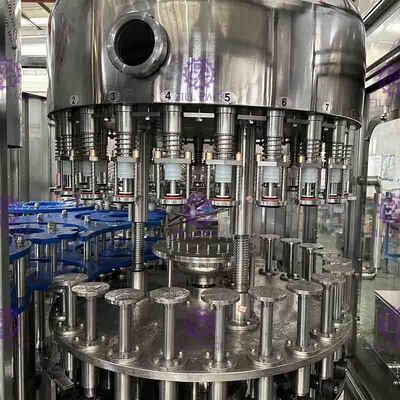

The bottles sent by enter bottle conveyor belt will divided into a fixed interval of one-way,and the bottle inverted by enter bottle clamp, then the bottles can be sent to filling machine’s
enter bottle star-wheel. The bottle by lift-up motion is fixed on the bottom of filling parts.
After filling, the bottle pallet lowered, centering guide rod upward , the bottles are sent to conveyor
star-wheel, then to capping star-wheel.
After capping process, the bottle will be sent to out bottle conveyor belt by out bottle star wheel.
Electrical apparatus:
| PLC/ transducer/ touch screen | Mitsubishi |
| Contactor/ air switch/ stabilized voltage supply | Schneider |
| Photoelectricity/ proximity switch | Autonics |
| Cylinder | Airtack |
| Motor | AB motor |
