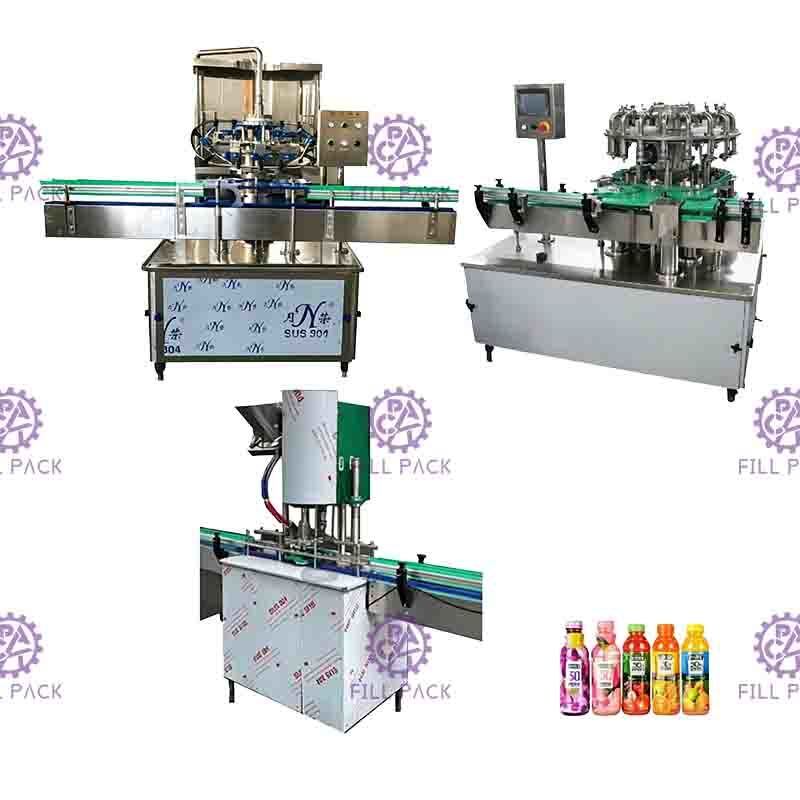

0-2L PET Plastic Bottle Fruit Juice Beverage Hot Filling Machine Production Line Fully Automatic

Product Description

2000BPH 0-2L Fully Automatic PET Plastic Bottle Fruit Juice Beverage Hot Filling Machine Line Plant Production Line

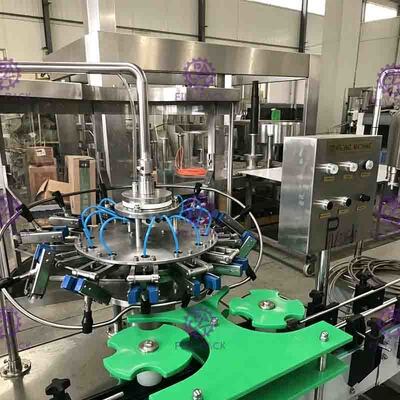

Rotary bottle washer

Principle:

This washer is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for rising for 1st hand PET or glass bottles.It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitely. The rinser is the ideal choice for drink factories of small and middle size. The bottles will be taken into rinser by conveyor, the dia plate will turn each bottle to be caught by spring clamp, with driven energy of motor, the spring clamps will go forward a circle along main axis, the bottles will be reversed 180°,bottle mouths will be facing to floor, and at the meantime, spray water value will be open and clean pressure water will spray inside bottles, with the water fall down, dirty inside bottles will be taken away. Then the cleaned bottle will be turned 180°again and sent into next machine station. The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

Parameters:

Rising heads: 12 pcs

Capacity: 0-3000BPH (each bottle rinsing time 4s)

Power: 0.92KW

Dimension: 1050*1050*1900mm

Weight: 450KG

Applicable bottle: D∮50-100mm,H 50-350mm

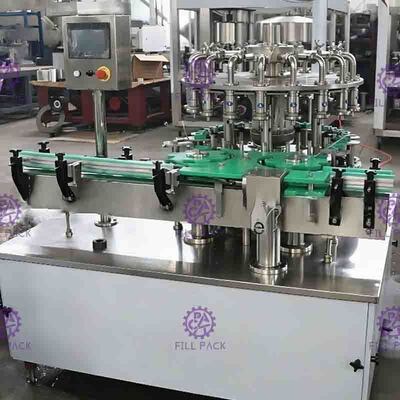

Hot Filling Part

Model :	RG -12
Production Capacity:	2000b/h
Bottle /standard:	PET bottle
Applicable bottle:	D=Ø50~ Ø100mm,H=160~320mm
Filling Temperature	65-80 ℃
Power:	1.85kw
Overall Dimensions:	1100*1100*1800mm
Weight :	550KG



Backflow device

Principle:

The juice enters the filling machine to start filling after reaching the technological requirements through the UHT (Ultra High Temperature Instantaneous Sterilization) system. The function of the backflow device is to ensure that the filling volume of each bottle is on a uniform level. If there is a liquid level that exceeds the specified level, the backflow pump will start vacuuming and extract the excess liquid into the front UHT sterilization tank for high-temperature sterilization,then back to the filling link.

Parameters:

Backflow tank size:100L

Vacuum pump power:1.1KW

Backflow pump power:0.75KW

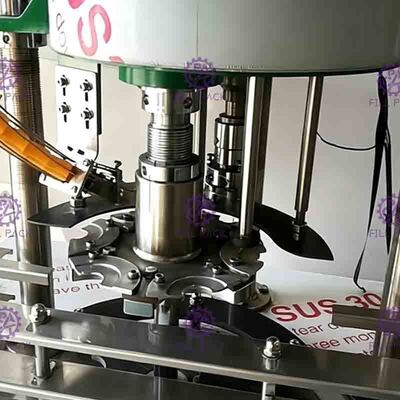

Capping Part

Principle:

The machine is used for capping for plastic screw caps, it includes auto cap loader and capping system 2 parts. Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping. The capping head is by Italian magnetic technique, it will protect caps not to be destroyed. The capping correctness will be 99%. The opposite caps will be deleted automatically. The capping head is an separate part. Change cap is only need to change capping head, easy for change and operation. The whole machine is made from SUS304, long shelf time.

Parameters:

Capping head: 1 pc

Power: 1.1KW

Applicable bottle:D∮90mm,H<300mm

Dimension: 900*700*2000mm

Weight: 500KG



Application:
