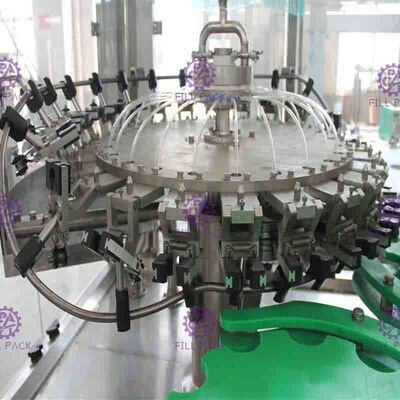

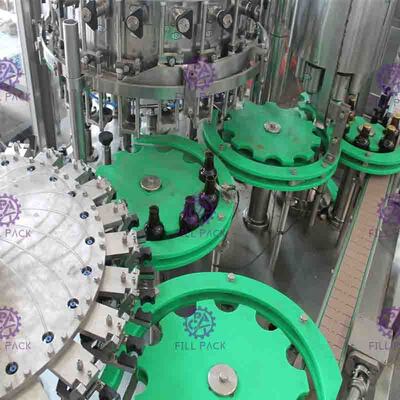

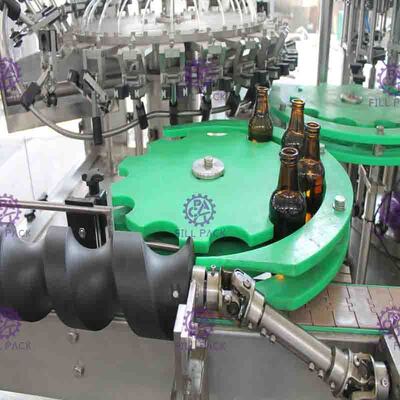

PLC Japanese Beer Bottling Equipment For Glass Bottle Pull Ring Cap
Product Details:
| Place of Origin: | Zhangjiagang city, China |
| Brand Name: | FillPack |
| Certification: | ISO9001:2008, CE |
| Model Number: | BCGF24-18-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 40000-60000 per set |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 30-40 working days |
| Supply Ability: | 30 sets per year |
|
Detail Information |
|||
| Filling Liquid: | Beer | Filling Technology: | Double Vacuum Balanced Pressure Filling |
|---|---|---|---|
| Suitable Bottle: | Glass Bottle | Suitable Cap: | Metal Pull Ring Cap |
| Bottle Protection: | UHMWPE | Cap Protection: | PU Coated |
| Highlight: | wine filling equipment,aerosol filling machine |
||
Product Description
PLC Japanese Beer Bottling Equipment For Glass Bottle Pull Ring Cap
Specification:
1, The beer filling machine in link is exported to Taiwan;
2, The glass bottle pull ring cap beer is selled by some top brands such as Japanese KIRIN;
3, The beer filling machine production technology is from Japan;
4, PLC control and touch screen operation;
5, Bottle bottom holding and transmmission model;
Characters:
1, Inside liquid tank 350Mu polishing to make sure no dead corner;
2, Long lasting bearing for stable running and easy maintainence;
3, Stainless steel rinsing clamps to reduce 2nd pollution for bottle neck;
4, Cam hardness 55 degree for less wearing;

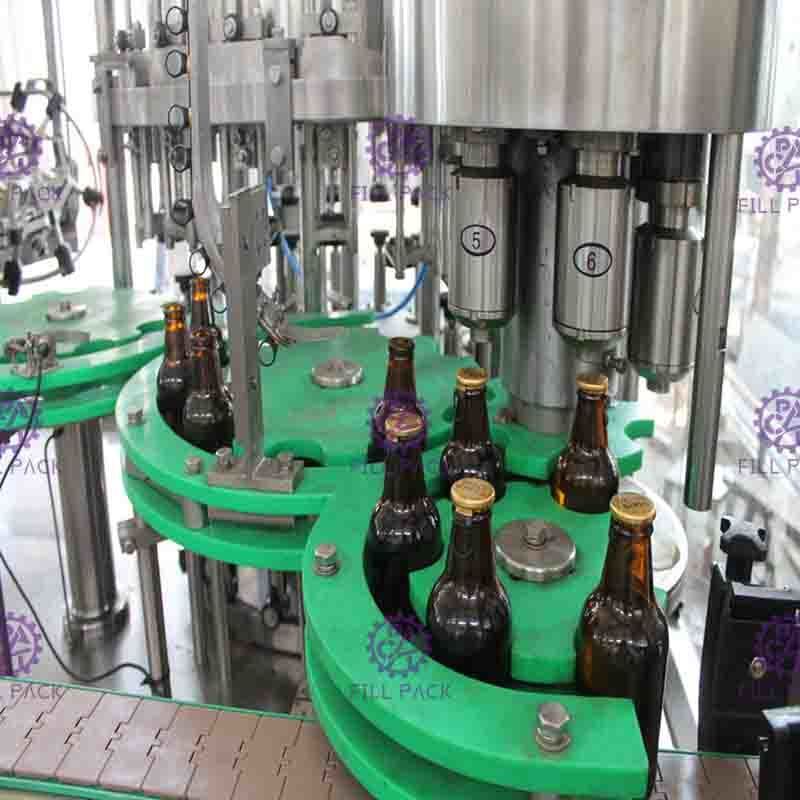

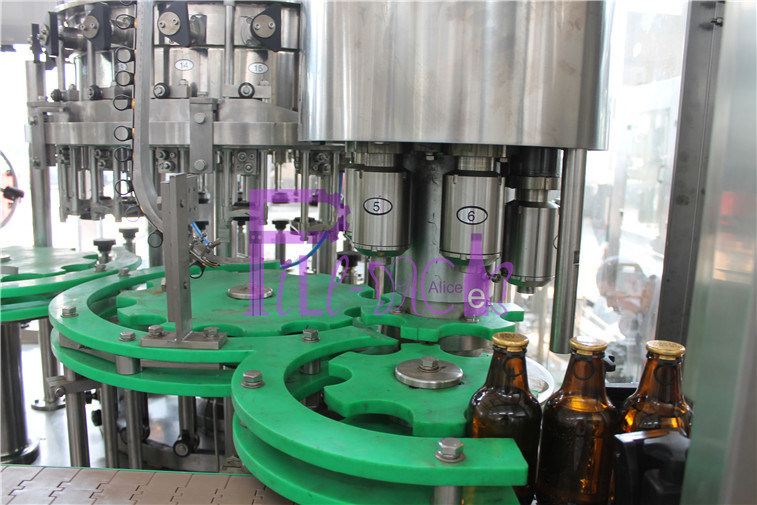

5, Capping cylinder with thick integrated cover in order the capping centring;
Parameters:
| Model (BCGF) | 12-12-4 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
| Number of washing, filling, capping heads | 12-12-4 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
|
Suited bottle specification (mm) |
Φ=50-100 H=170 (330-1500ML) |
Φ50-Φ110 H=160-340 |
||||||
|
Production capacity (500ML) |
1500- 3000 |
3000- 4000 |
5000- 6000 |
8000- 10000 |
12000 -14000 |
15000 -18000 |
18000 -20000 |
20000 -25000 |
|
Washing pressure |
0.2-0.25 | 0.2-0.25 | ||||||
|
Filling pressure |
0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
|
Main Motor power (Kw) |
2.2 | 2.2 | 2.2 | 4 | 4 | 5.5 | 7.5 | 7.5 |
| Overall dimensions (L×W×H) mm |
2300×1600 ×2500 |
2600×1920 ×2550 |
3100×2200 ×2800 |
3850×3000 ×2850 |
4850×3800 ×2750 |
5750×3550 ×2750 |
6500×5500 ×2750 |
7680×6640 ×2650 |
|
Weight (kg) |
2800 | 3650 | 4800 | 6800 | 8650 | 10500 | 12800 |
16000 |
Company advantage
1, Full experience sales and after sales team; Responsible production team and patient commissioning group;
2, Engineer is good at designing more stable technology for all parts for bottle water filling machine;
