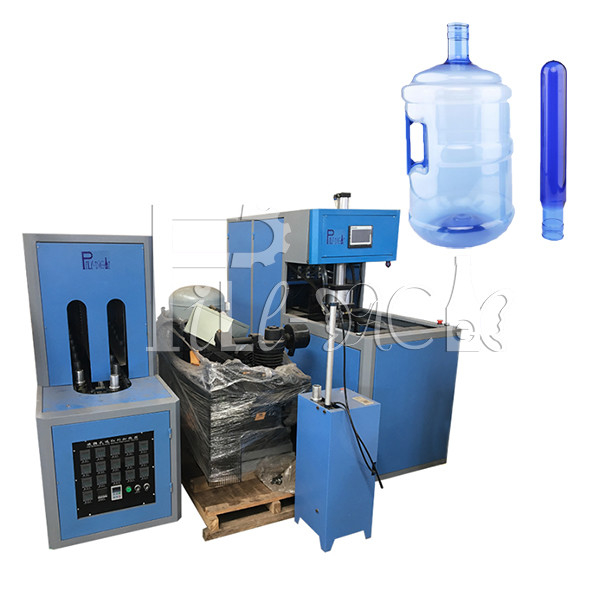

5 Gallon Barrel Blowing Equipment 120BPH Semi Auto
Product Details:
| Place of Origin: | Jiangsu |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | FP-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/sets |
|---|---|
| Price: | USD$7500/set |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 25 days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 1 set/sets/month |
|
Detail Information |
|||
| Application: | Gallon Bottle | Automation: | Semi-auto |
|---|---|---|---|
| Blow Molding Type: | Stretch Blow Moulding Machine | Capacity: | 120BPH |
| Bottle Volume: | 10-20L | Warranty: | 1 Year Warranty |
| Highlight: | 5 gallon barrel blowing equipment,120BPH 5 gallon blowing machine,Semi auto 5 gallon blowing machine |
||
Product Description
3-5 gallon bottle blow molding machine / barrel blowing equipment / bucket making device
Description:
FP-120 blow molding machine is especially used to produce 3-5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 30mm-120mm.
●Perfect function with economic investment.
●Small size and compact construction with no space waste.
●Easy to operate and maintain ,operation by one person .
●Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
●We can provide performs and various bottle& cap molds for 3-5 gallon bottles to meet customer’s requirements.
Working principle and diagram:
|
Model
|
FP-120
|
|
|
Container
|
Product material
|
PET
|
|
Volume
|
10L-20L(3-5Gallon)
|
|
|
Output
|
150BPH
|
|
|
Max bottle length
|
430mm
|
|
|
Max bottle diameter
|
300mm
|
|
|
Moulding
|
Stretching stroke
|
450mm
|
|
Clamping force
|
60KN
|
|
|
Mould opening stroke
|
360mm
|
|
|
Machine size and weight
|
Main machine (L x W x H)
|
2350*750*1900mm
|
|
Main machine weight
|
1500Kg
|
|
|
Heater (L x W x H)
|
2670*680*1650mm
|
|
|
Heater weight
|
380Kg
|
|
|
Power
|
40kw
|
|
