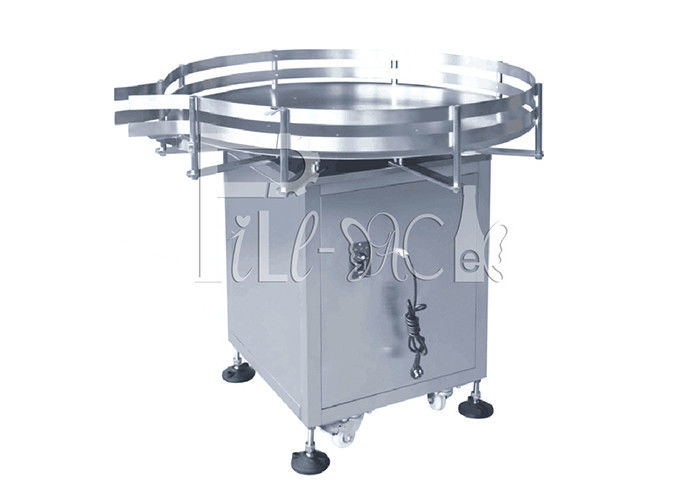

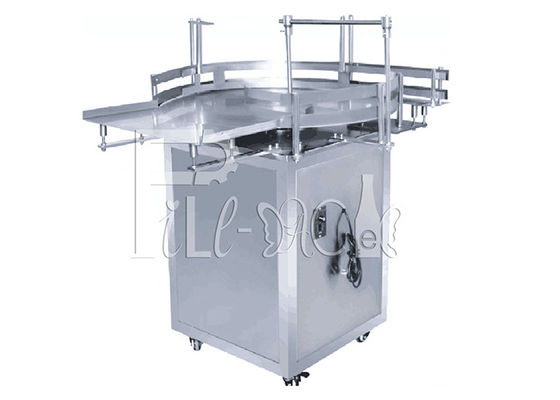

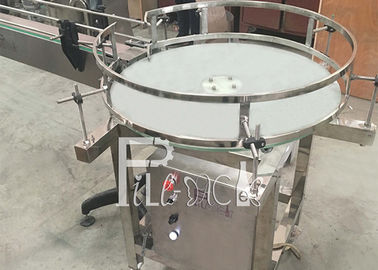

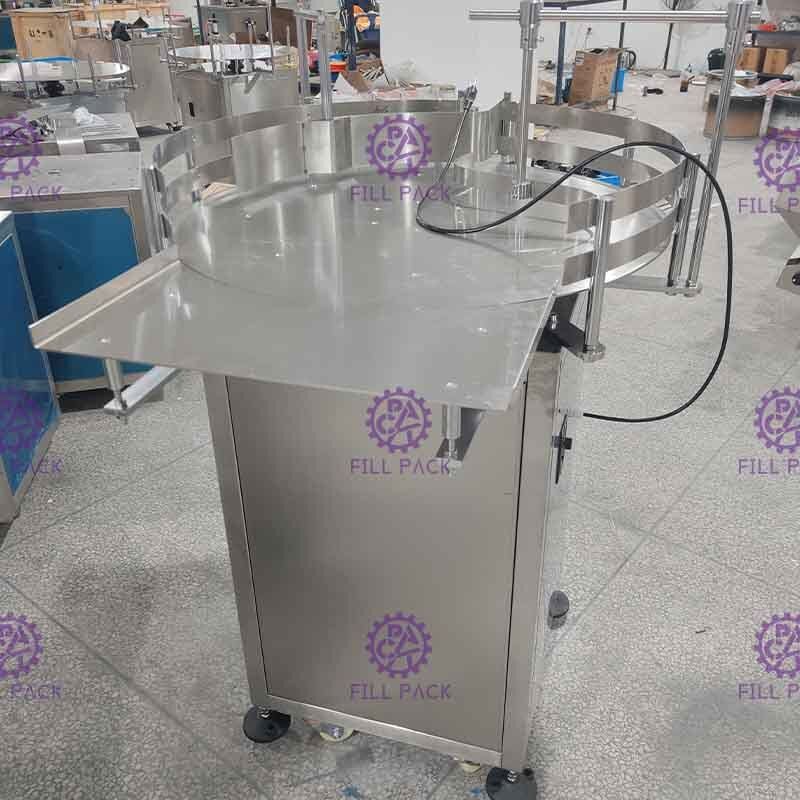

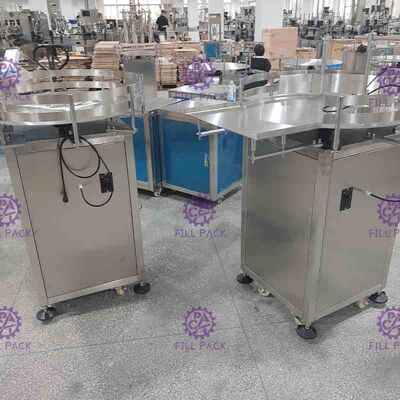

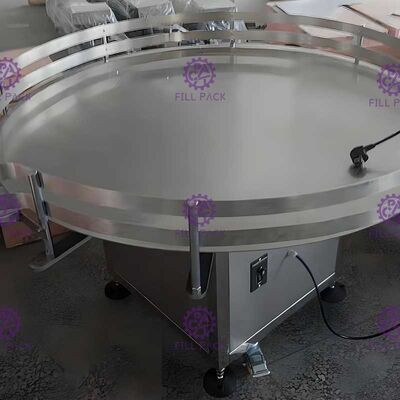

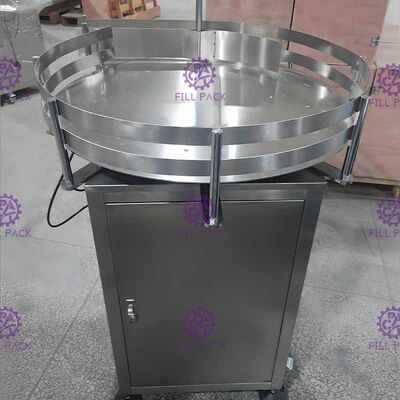

6000BPH Accumulation Turnround PET Glass Bottle Feeding Table
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 |
| Model Number: | 800-1200mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 800-1500USD/set |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 25 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Model: | 800-1200mm | Packing Speed:: | 0-6000BPH |
|---|---|---|---|
| Measuring Range:: | 0-40 Bottles Per Minute | Height Range:: | 90mm Adjustbale |
| Total Power:: | 120W | Material:: | SUS 304 |
| Type:: | Bottle Sorting Machine | Warranty:: | 1 Year |
| Highlight: | accumulation bottle feeding table,turnround glass bottle feeding table,6000BPH bottle feeding equipment |
||
Product Description
The worker put bottles on loading table, the turning table driven by motor will bring bottles into conveyor, the turning table speed is adjustable to fit with conveyor speed. The whole machine is made by SUS304, and turn table with tempered glass, clean and easy for maintenance.
Applicable bottles
1, It can be used for various kinds, materials, shapes of bottles.
2, Speed can be changed freely by transducer;
Principle:
The accumulation table will be connected with belt conveyor, turning table driven by motor will bring bottles in, the turning table speed is adjustable to fit with conveyor speed;
The whole machine is made by stainless steel, clean and easy for maintenance;
Advantages for Turn table:
1. Motor: Panasonic
2. Speed can be changed freely by transducer
3.Adjustable turn table height for bottles of different heights, adjustable turn table width for bottles of different sizes.
Parameters:
| Table Diameter | Dimension for feeding | weight | dimension for collection | weight | Power | Capacity |
| 800 mm | 1200*1050*1350mm | 85kgs | 1000*1000*1150mm | 75kgs | 120 W | 40 bottles per minute |
| 1000 mm | 1350*1200*1350mm | 100kgs | 1250*1200*1150mm | 90kgs | 120 W | 40 bottles per minute |
Delivery time:The machines will be made 7 working days after the bottles are provided;
Payment:30% TT against PI, 70%before Shipment, small amount suggest once payment.
