Pure Drinking PET Bottle Water 3 In 1 Monoblock Rinsing Filling Capping Equipment / Plant / Machine / System / Line
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | QS-12 CG-12 FXZ-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-40000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 15 Sets Per Months |
|
Detail Information |
|||
| Warranty: | 1 Year For Spare Parts | Capacity: | 1500-2000 Bph |
|---|---|---|---|
| Suitable Bottle Size: | 0.3-2L PET Bottle | Automation: | Automatic |
| Application: | PET Bottle Water | Dimension(L*W*H): | 2100*1750*2100 Mm |
| Highlight: | aseptic filling line,water bottling equipment |
||
Product Description
Decription of linear type 12-12-1 Pure drinking water PET bottle filling line

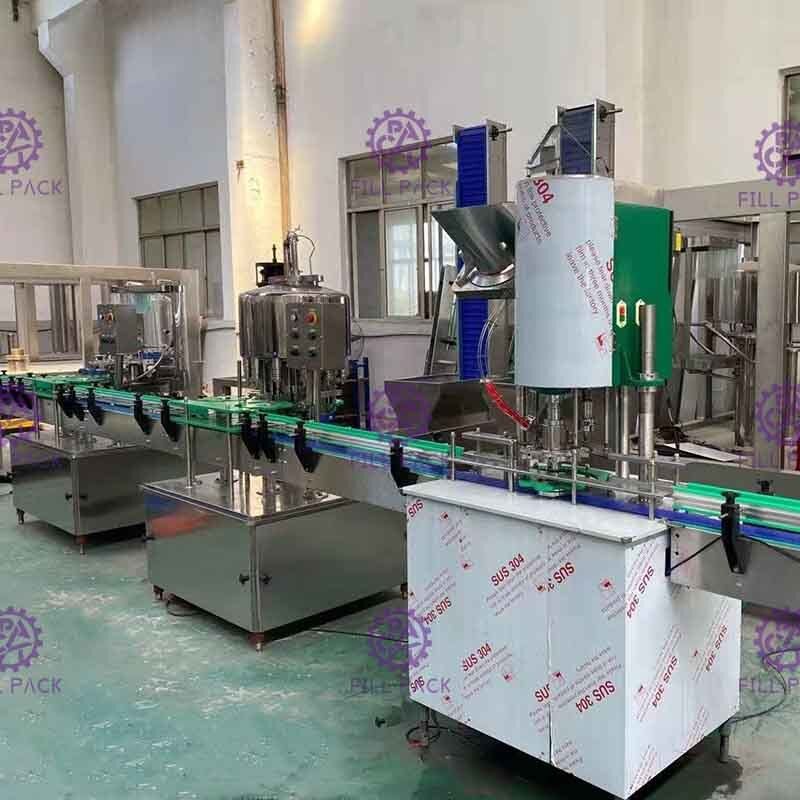

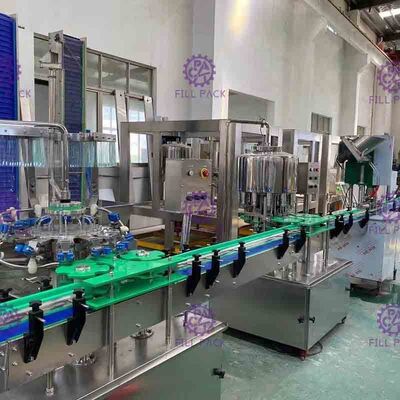

The monoblock washer filler capper machine is composed of QS washer, CG filler, FXZ capper connected by linear conveyor system, it is suitable for just trail started customer or which do not require high speed.

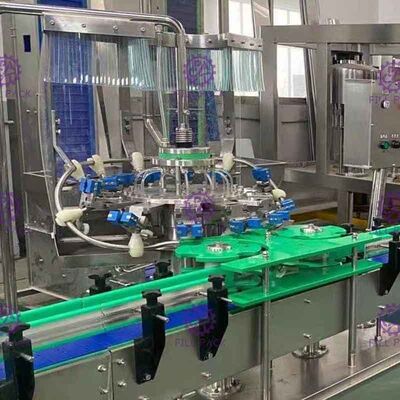

Rotary bottle washer:
★The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.
|
Parameters:
|
|
| Rising heads | 12 pcs |
| Capacity | 0-3000BPH (each bottle rinsing time 4s) |
| Power | 0.92KW |
|
Dimension
|
1050*950*1700mm |
| Weight | 700KG |
| Applicable bottle | D∮50-100mm,H 50-350mm |
Normal pressure filler:
★ The whole machine is made of SUS304. The filling head is spring type without dead angel, no dripping. Easy for clean and maintenance. The holding clap model is suitable for all bottles with same bottle neck, it is easy for change bottle shape and volumes.
|
Parameters:
|
|
| Filling heads | 12 pcs |
| Power |
1.1KW
|
| Dimension | 1100*1050*1850mm |
| Weight | 800KG |

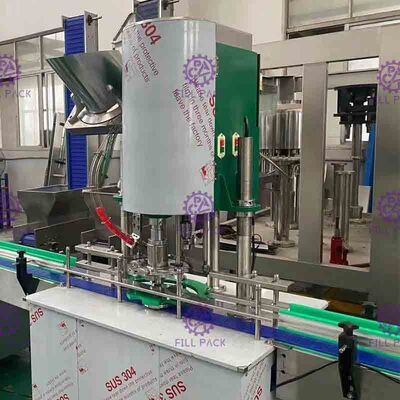

Screw cap capping machine:
★ The whole machine is made from SUS304, long shelf time.
| Parameters: | |
|
Capping head
|
1 pc |
| Power |
1.1KW
|
| Dimension | 1000*850*2000mm |
| Weight | 600KG |
|
Our Washing-filling-capping machines (3-in-1 and Linear type)
|
||||||
| 3in1(0-2L bottle) | Capacity(bottle per hour) | 3in1(3-10L bottle) | Capacity | Linear type | Capacity | |
| CGF8-8-3 | 2000-3000BPH | CGF8-8-3B | 0-1000 | CGF4-4-1 | 500BPH | |
| CGF12-12-4 | 3000-4000BPH | CGF12-12-4B | 0-1500 | CGF6-6-1 | 750BPH | |
| CGF18-18-6 | 6000-7000BPH | CGF18-18-6B | 0-2500 | CGF8-8-1 | 1000BPH | |
| CGF24-24-8 | 11000-12000BPH | CGF24-24-8B | 0-3500 | CGF10-10-1 | 1500BPH | |
| CGF32-32-10 | 14000-15000BPH | CGF32-32-10B | 0-5000 | CGF12-12-1 | 2000BPH | |
| CGF40-40-10 | 19000-20000BPH | |||||
| CGF50-50-12 | 23000-24000BPH | |||||
Want to Know more details about this product
