200BPH Automatic 5 Gallon Water Filling Machine For Drinking Water
Product Details:
| Place of Origin: | ZhangJiaGang JiangSu China |
| Brand Name: | FILL PACK |
| Certification: | CE, ISO9001 |
| Model Number: | QGF-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $40000-$60000/set |
| Packaging Details: | Blanket cloth or wooden case |
| Delivery Time: | 15-20working days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Bottle Size: | 5 Gallon Bottle | Capacity: | 200BPH |
|---|---|---|---|
| Dimension(L*W*H): | 2200X2100X2200mm | Type: | Filling Machine |
| Highlight: | bottle filler machine,commercial bottling equipment |
||
Product Description

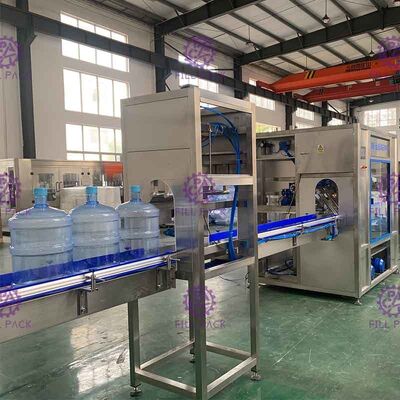

200BPH Automatic 5 Gallon Water Filling Machine For Drinking Water
Features of our gallon water production machine
1. In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
2. This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
|
QGF-200 20L filling machine/unit/device disinfect water washing with bottle holder
|
|||
|
Items
|
Name of machine
|
Model
|
Size(mm)
|
|
1
|
Semi-auto de-capper and washer with full SUS304
|
BG-1
|
800*800*1200
|
|
2
|
Monoblock rinser-filler-capper with full SUS304
|
CGF-200
|
3400*1000*1750
|
|
3
|
Light checker
|
/
|
/
|
|
4
|
Roller conveyor
|
/
|
/
|
|
5
|

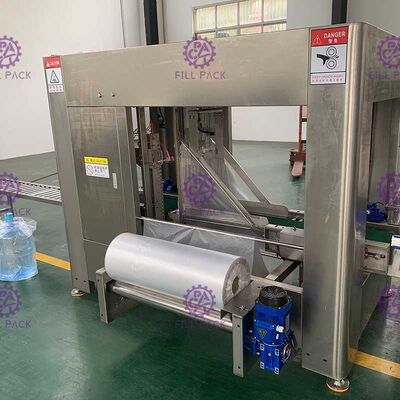

Label shrink tunnel
|
/
|
600*600*1000
|
|
6
|
Ink jet code printer
|
PM-168
|
347*220*100
|
1.Semi-auto de-capper and washer:
|
Parameters
|
|
|
Power
|
1.12KW without heating, 2.12KW with heating
|
|
Dimension
|
800*800*1200mm
|
|
Weight
|
110kg
|

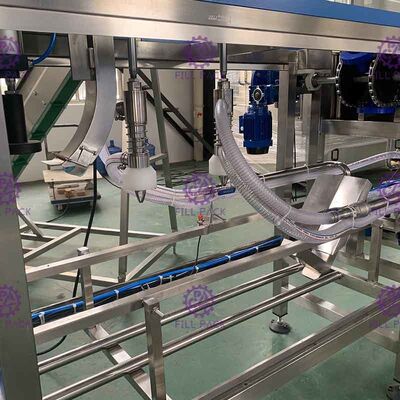

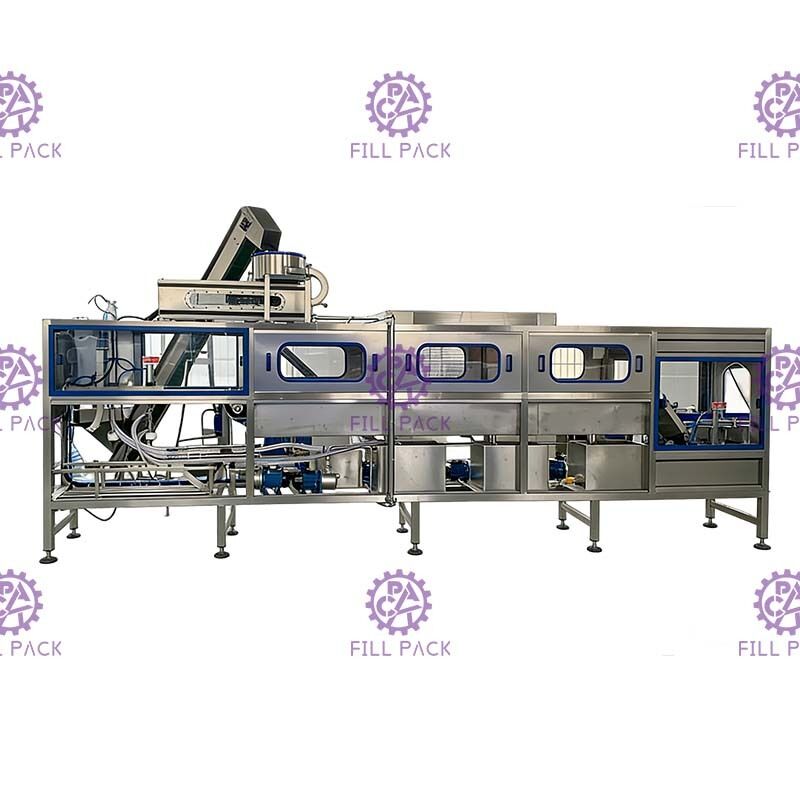

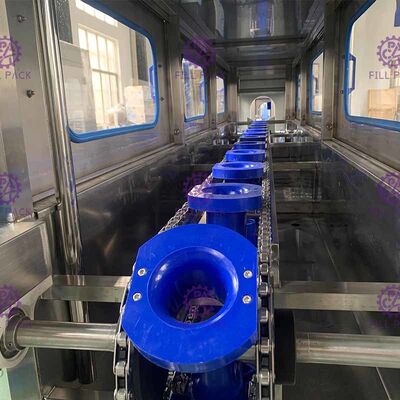

2. Monoblock rinser-filler-capper:
The 20L filling machine is integrated washing filling and capping together. It is ideal machine to produce barrel water. The whole machine is using stainless steel 304 ,rot resistant,can be cleaned easily. Main electric parts are all branded. Air channel system use Air TAC brand product. The machine is with compact construction,will occupy small room,working efficiency is high. Only need 2 operators to control, is a good choice for factory to choose.
|
Parameters
|
|
|
Cylinder
|
Air tech-Taiwan
|
|
Magnetic valve
|
Air tech-Taiwan
|
|
Rising pump-filling pump
|
Nanfang
|
|
Motor
|
TWT Taiwan
|
|
PLC
|
Mitsubishi Japanse
|
|
Power
|
5.3KW
|
|
Dimension
|
3400*1000*1750mm
|
|
Weight
|
500kg
|
Ink jet code printer:
1. It has a Built-in pinyin input method of national Primary and Second Chinese character(more than 6000 Chinese characters).
2. The host has four font (Song typeface, Hollow font, Bold font, Bitmap font).The four font can be mixed in arrangement. If you need other font, you can also transmit through computer.
3. It can jet one to fifteen lines of English Numbers, or one to eight lines of Chinese characters, and the size of the word can be adjusted. This system is dual-purpose.
4. The editing interface can switch at any time to either English or Chinese.
5. It has indicator light for Photoelectric sensor, synchronizer and inkjet printing to show whether they are working normally.
