Carbonated Drink Beverage PET Plastic Glass 3 In 1 Monobloc Bottling Machine / Equipment / Line / Plant / System
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | DCGFG32-32-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20000-50000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Dimension(L*W*H): | 4300*2000*2300 Mm | Weight: | 6000 Kg |
|---|---|---|---|
| Power: | 8KW | Capacity: | 8000-10000bph |
| Cap Style: | Plastic Screw Cap | Suitable Bottle Size: | 0.3-2L PET Bottle |
| Highlight: | soft drink making machine,drink production line |
||
Product Description

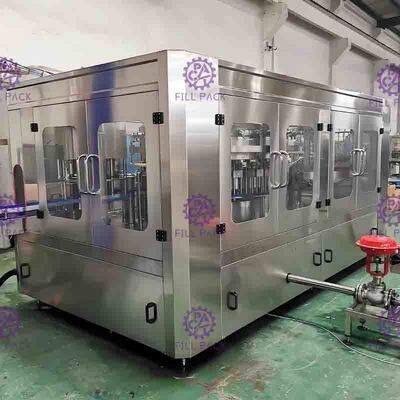

Description of DCGFG32-32-10 Crown Cap Glass Bottle Filling machine
Our carbonated filling machines have plastic bottle type and glass bottle type
Let's explore our glass bottle carbonated filling machine
Let's explore our glass bottle carbonated filling machine

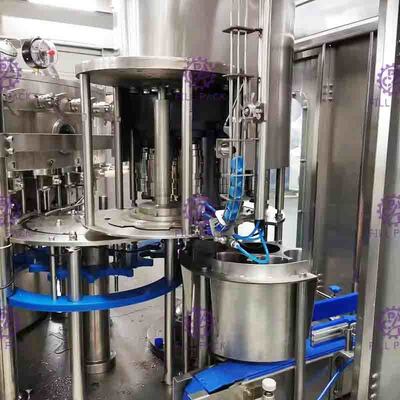

>>>Working process:
★The transfer mode of glass bottle is the bottom of the towing bottle. Glass bottles are separated by screw and then entered into the bottle washing mechanism in turn. By clamping the bottle mouth, the glass bottle is reversed 180 degrees, so that the bottle mouth is down, spraying and washing the inside and outside of the bottle. The rinsing water used is pure water. The rinsing water will be concentrated in the receiving plate and discharged by the designated outlet. The rinse here is simply to remove small particles of impurities that may exist in the air inside the glass bottle. If the glass bottle is recycled, it needs to be disinfected and cleaned before entering the carbonated beverage filling machine.
>>>Our machine have so many characteristics:
★1, The system is simple: the integral table board is adopted, the structure is rigid, easy to wash and clean, easy to maintain, and the maintenance of the machine is more convenient and simple.
★2, Accurate alignment of bottles in filling process: unique filling with clamping mouth and pre-cover function of centering cover ensure accurate sealing between bottle mouth and filling valve mouth, eliminate leakage phenomenon, and really reduce the loss of finished materials.

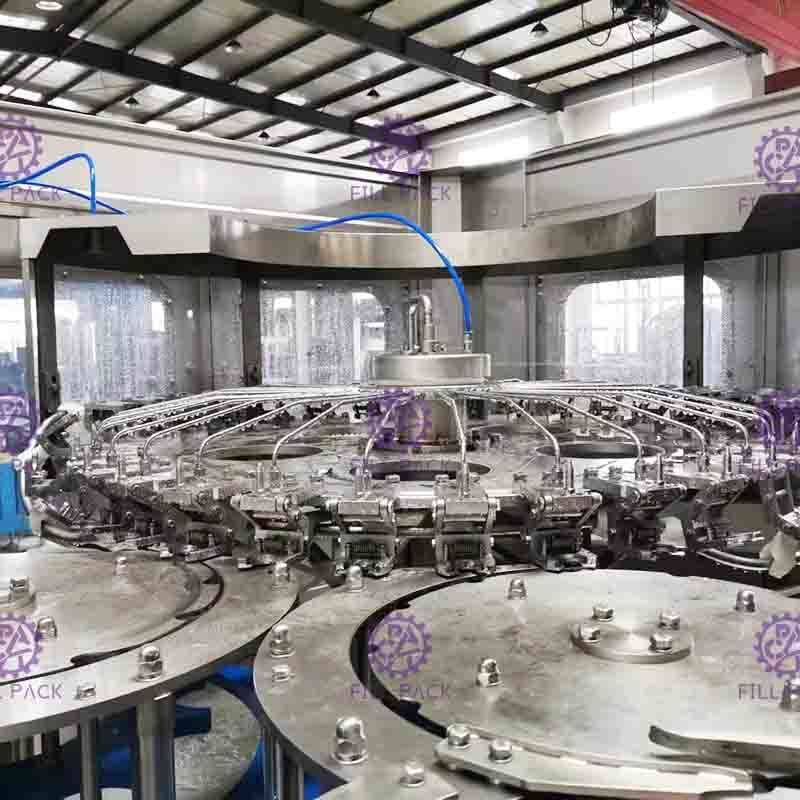

Bottle Washing
1) The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
2) The rinser is driven by driving system positioned inside machine frame via gear transmission.
3) Rinser using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the side wall and bottom to make the bottle clean.
1) The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
2) The rinser is driven by driving system positioned inside machine frame via gear transmission.
3) Rinser using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the side wall and bottom to make the bottle clean.
|
Teachnical parameters of DCGFG32-32-10
|
||||||
|
Filling precision
|
≤+/-1mm(liquid level)
|
|||||
|
Filling pressure
|
≤0.4MPa
|
|||||
|
Glass bottle specification
|
(Bottle diameter)50-100mm (Height)170-320mm
|
|||||
|
Suitable cap shape
|
Glass or other material screw cap
|
|||||
|
Filling temperature
|
0℃—5℃
|
|||||
|
Cleaning pressure
|
0.2-0.25MPa
|
|||||
|
|
||||||
|
Our family of glass bottle carbonated filling machine
There's always one suitable for you
|
||||||
|
Model
|
Rinsing filling capping heads
|
Capacity(BPH)
|
Power(kw)
|
Weight(Kg)
|
Dimension
(mm)
|
|
|
DCGFG12-12-4
|
12/12/4
|
1000-2000
|
4.4
|
2800
|
|
|
|
DCGFG18-18-6
|
18/18/6
|
3000-4000
|
5
|
3800
|
2360*1770*2700
|
|
|
DCGFG24-24-8
|
24/24/8
|
6000-7000
|
6
|
5000
|
3200*1900*2300
|
|
|

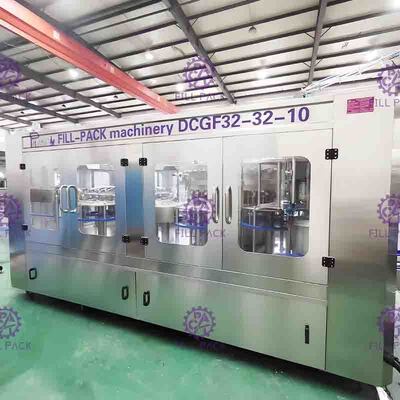

DCGFG32-32-10
|
32/32/10
|
8000-10000
|
8
|
6000
|
4300*2000*2300
|
|
|
DCGFG40-40-12
|
40/40/12
|
10000-12000
|
10
|
9000
|
4500*3500*2300
|
|
